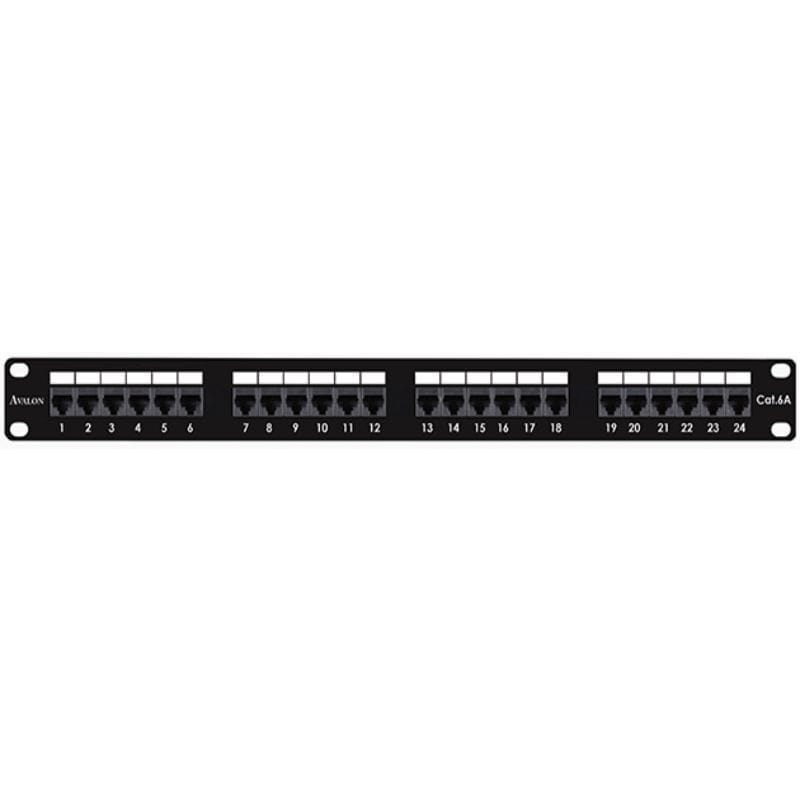

Avalon – Cat 6A 24 Port Unshielded Patch Panel Loaded,1U – ANC6AUPP-24
See all products from avalonAED 264.60 VAT included
Avalon – Cat 6A 24 Port Unshielded Patch Panel Loaded,1U – ANC6AUPP-24
Product Code : SS150999
Seller: Security Supplies
Brand: Avalon
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in UAE
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Avalon CAT.6A 24 Port Patch Panels are the industry’s high-quality Panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA-56-.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive. The construction is in standard 19” size, suits for all 19” rack installations.
Features
- High density 24 port 1U patch panel
- UTP Snap-in Type
- Six Port RJ45 modules applied
- Suitable for Cat.6A UTP Keystone Jacks
- Integral plastic cable management
- Modern design and simplicity of mounting
Specifications
- Brand: Avalon
- Part: ANC6AUPP-24
- Thickness of cold-rolled steel:1.5mm
- Operating Temperature Range : -60? to 80?
- IDC Accept: 22-26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500?
- Current Rating: 1.5Amps
- DC Resistance: 0.1 ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
- Spring Wire: Phosphor Bronze With Gold-plated 3µ-50µ
- IDC Contact: Phosphor Bronze
- Specifically Design: With Two PCB Panel & Tool-less
- Insertion life: ?1000 mating cycles
- Plug /Jack Contact Force: 100g min
- Humidity: 5 to 93% (non-condensing)
