AED 378.00 VAT included

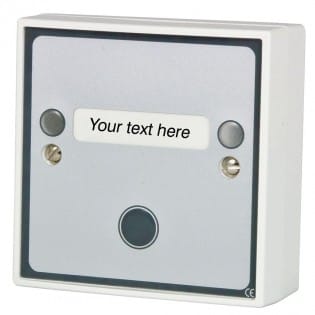

Hoyles Multi function push button c/w LEDs sounder & custom text. Wall mounted button in white ABS complete with a single gang low profile mounting box. This is a MULTI-FUNCTION button that provides DPCO contacts rated at 2A 30vdc for use with equipment such as maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Commutate) Two LEDs and an integral sounder are provided. The LEDs indicate when relay is switched, the sounder bleeps as relay changes. The LEDs are available in RED, BLUE, GREEN or YELLOW.
This product requires a continuous supply of 12vdc.
Above AED1000 in UAE
For 365 days
Only Reputed Brands
Multiple payment options
Hoyles Multi function push button c/w LEDs sounder & custom text. Wall mounted button in white ABS complete with a single gang low profile mounting box. This is a MULTI-FUNCTION button that provides DPCO contacts rated at 2A 30vdc for use with equipment such as maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Commutate) Two LEDs and an integral sounder are provided. The LEDs indicate when relay is switched, the sounder bleeps as relay changes. The LEDs are available in RED, BLUE, GREEN or YELLOW.
This product requires a continuous supply of 12vdc.Specification
Quiescent Current – 30mA @12vdc
Operating Current – 60mA @12vdc
Switch Contacts – 2A 30vdc
Visual Indication – 2 x high brightness LEDs
Integral Sounder
Tamper – N/A
Material – White ABS
Weight – 0.12kg
87mm x 87mm x 36mm (Surface mount)
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
Back box supplied for surface mount
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
Tactile button
Unique on site labelling system
