AED 748.65 VAT included

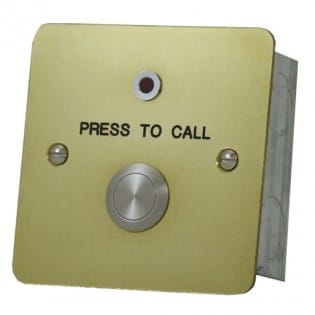

Hoyles S1705BR Polished Brass Call button with re-assurance LED. Polished Brass engraved call point with a vandal resistant button and re-assurance LED. This is a non-latching unit with change over contacts. Separate terminals are provided for the LED (red). The LED current limit resistor is provided for 12 vdc operation.
Above AED1000 in UAE
For 365 days
Only Reputed Brands
Multiple payment options
Hoyles S1705BR Polished Brass Call button with re-assurance LED. Polished Brass engraved call point with a vandal resistant button and re-assurance LED. This is a non-latching unit with change over contacts. Separate terminals are provided for the LED (red). The LED current limit resistor is provided for 12 vdc operation.Specification
Led Current – 20mA@12vdc
Switch Contacts – SPCO 2A @30vdc
Sounder Current – N/A
Visual Indication – 1 x Red LEDs
Integral Sounder Level – N/A
Tamper – N/A
Material – Polished Brass
Dimensions – 86mm x 86mm x 2mm – Facia
38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight – 0.27kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
