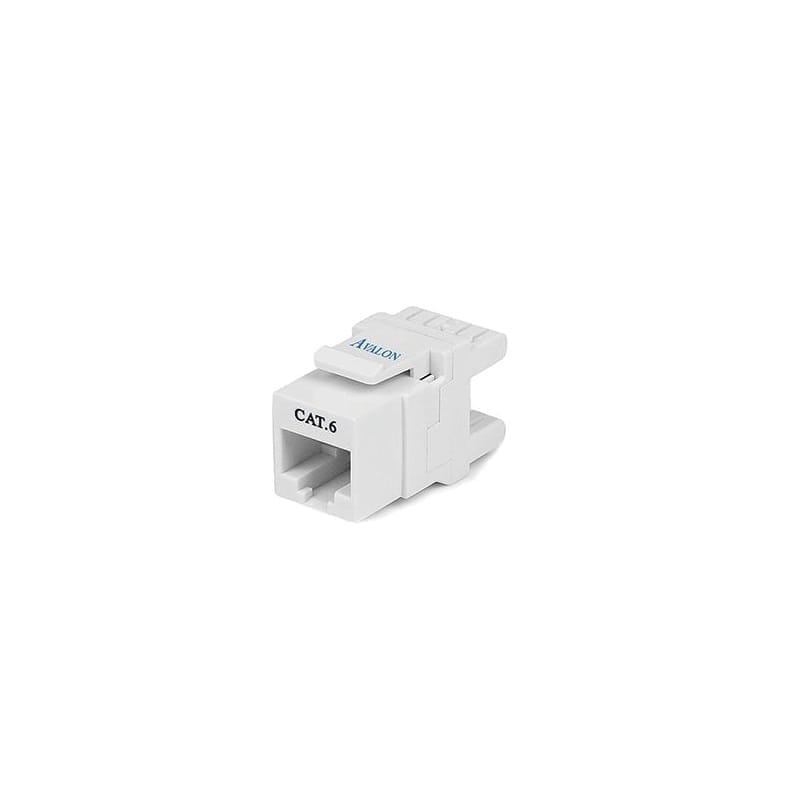

Avalon Cat6 UTP 180 Degree Keystone Jack
AED 10.24 VAT included
Product Code : SS11444
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon Cat6 UTP 180 Degree Keystone Jack are designed and manufactured to meet the 10 Gigabit transmission requirements. The Jacks snap easily in and out of wall outlets, surface mount boxes and patch panels. These comply with TIA/EIA-568-C.2 specifications
Features
- RJ45 8P 8C 90˚C 50u Punch Down Jack
- Terminating 4 pairs, 22-26 AWG Cable
- Universal labels color coded for T568A and T568B wiring schemes
- Fitting high density keystone panel
- UL, ETL, RoHS certified
- Two types of tools can be used for termination:110 and Krone Type
- IDC contacts that allows re-termination without damaging the unit
- Horizontal Distribution and Backbone Area
Specifications
- Product: Keystone Jack
- Brand: Avalon
- Colour: White
- Housing: High-impact Flame Retardant Polycarbonate, UL94V-0
- Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
- IDC Contact: Phosphor Bronze
- Insertion life: ≥1000 mating cycles
- Operating Temperature Range: -600 to 800
- IDC Accept: 22-26 AWG
- Voltage: 150 VAC MAX
