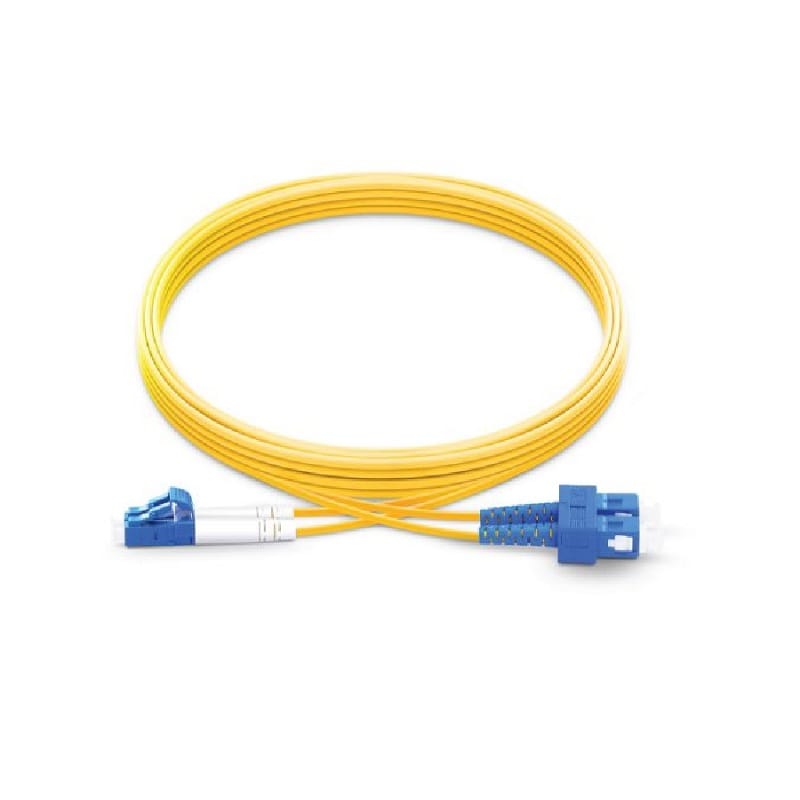

Avalon LC-SC Single Mode Duplex Patch Cord 1 mtr – LSZH
AED 34.13 VAT included
Product Code : SS11509
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon LC-SC Single Mode Duplex Patch Cord 1 mtr – LSZH is available in both simplex and duplex single-mode versions and is fully inter-mateable with NTT-FC products. This fiber patch cord comes with Zirconia ceramic ferrules with pre-polished UPC profiles and convex spherical ends. These end face types allow for faster polishing and low back reflection and low optical loss, while ensuring maximum repeatability.
Features
- Compliant with TELCORDIA GR-326-Core
- Compliant with JIS C-5973, ROHS, IEC,TIA/EIA 568-B.3
- Compliant with ROHS EU Directive 2011/65/EU
- Optical performance 100% factory tested with minimum loss
- Telecommunication Networks
- LAN
- CATV Networks
Specifications
- Brand: Avalon
- Product: Patch Cord
- Durability: 1000 Matings < 0.2 dB
- Temperature: Cycling —40 — +80 degrees Celsius (42 Cycles) < 0.2 dB
- Humidity Cycling: 75 degrees Celsius, 95%/336hr < 0.2 dB
- Vibration: 10 — 55 HZ ( 2 hours) < 0.2 dB
- Flex Test: 0 to 90 degrees to 0 to 90, 5kgf (100 cycles) < 0.2 dB
- Twist Test: 0.9mm :0.75kgf, 2.0mm/3.0mm:1.53 kg < 0.2 dB
- Straight Pull Test: 100 N Load < 0.2 dB
- Impact: 1.5m drop, 8 times < 0.2 dB
