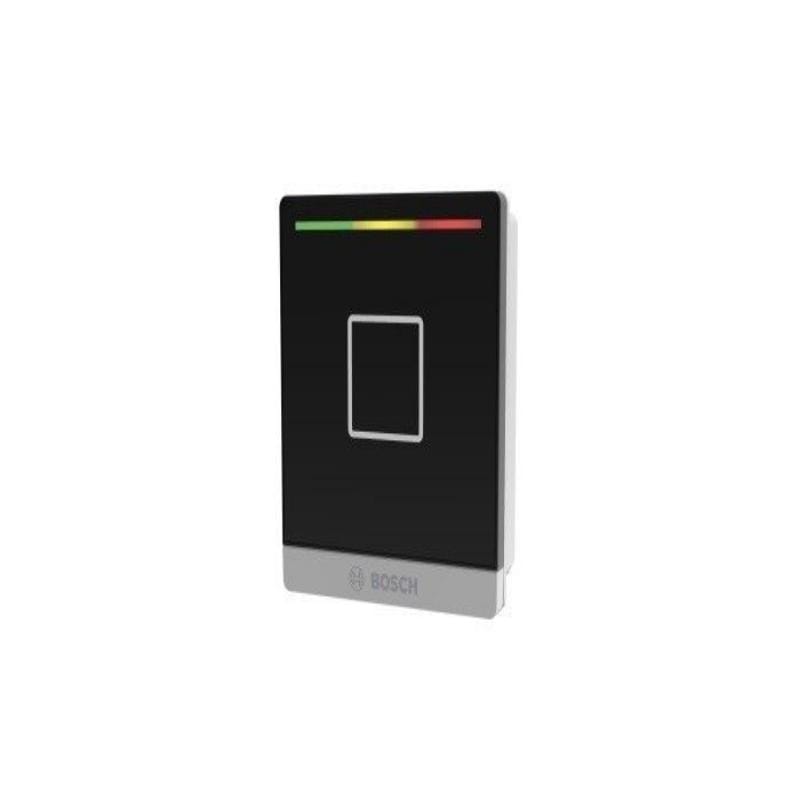

Bosch – ARD-SELECT-BO LECTUS Select OSDP Reader, Black – Germany

The LECTUS select line consists of two different reader variants, one with a keypad and one without keypad. The series is available in black and in white color. All reader variants, can be flush-mounted or, when using the optional mounting frame, surface-mounted. To detect unauthorized disassembly, the readers have sabotage detection. The readers do support MIFARE DESFire EV1 and EV2 as well as LEGIC Advant. The reader series has an RS485 interface and offers two protocol variants, OSDP including OSDPv2 secure channel or phg_crypt. When operating the reader in RS485/OSDP mode, up to eight readers can be connected to a respective controller, e.g. AMC2-4R4. The reader address can be set via four DIP-switches. The phg_crypt protocol is a proprietary secure protocol which can be used in third-party installations such as “Matrix”, offered by Bosch Energy and Building Solutions. This protocol is not supported by the current AMC2 controllers. Three LED indicators and a beeper give clear feedback to the user during operation. The reader is IP54 rated.
