CMX – Fire Alarm Panel with Recorder – PA-100FA
AED 1,811.25 VAT included

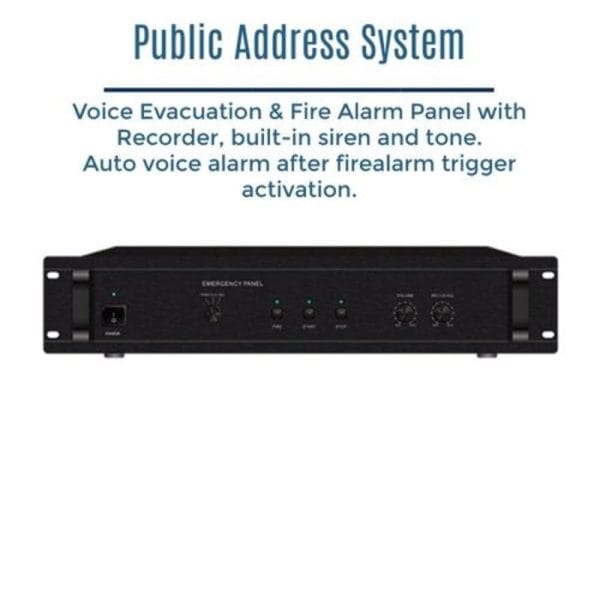

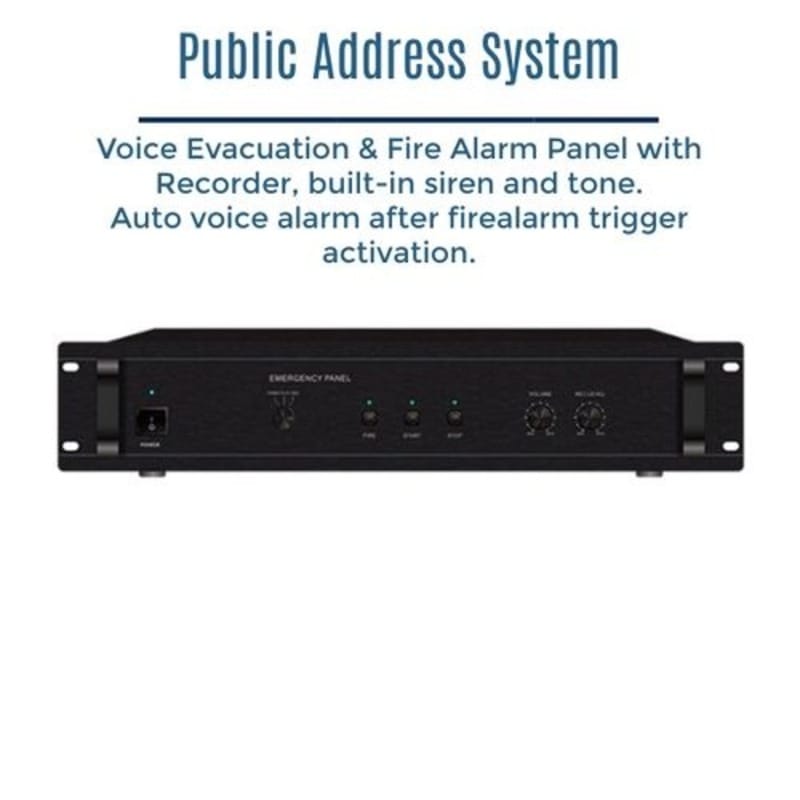

CMX – Fire Alarm Panel with Recorder – PA-100FA
Product Code : SS149787
Brand: CMX
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Automatically broadcast voice alarm message after trigger by fire system. Built-in voice recorder and fire alarm generator. The recorder available through external microphone and external line. The recorder with start, stop and play functions. The system with siren, play, record and off selective knob. One voice alarm input and one alarm output by phone jack type. One microphone input and one line input by phone jack type. 1 minute of digital customized voice evacuation message to the built-in memory IC. With record volume and alarm output volume attenuator by protective knobs. With Fire, start, stop and power working status indicators.
Features
- Automatically broadcast voice alarm message after trigger by fire system
- Built-in voice recorder and fire alarm generator
- The recorder available through external microphone and external line
- The recorder with start, stop and play functions
- The system with siren, play, record and off selective knob
- One voice alarm input and one alarm output by phone jack type
- One microphone input and one line input by phone jack type
- 1 minute of digital customized voice evacuation message to the built-in memory IC
- With record volume and alarm output volume attenuator by protective knobs
- With Fire, start, stop and power working status indicators
Specifications
- Brand: CMX
- Code: PA-100FA
- Inputs: Microphone: <5mV, 600ê, unbalanced; Line: <400mV 10kê, unbalanced
- Output: >200mV Sire or Recorded Message
- Rec: IC inside, 60 seconds, write in more than 8,000 times
- Frequency Response: 100Hz-3.4kHz?ñ3dB?
- Alarm Input: One alarm input, 0V short circuit closed contact
- Power Requirement: AC 220-240V/50-60Hz
