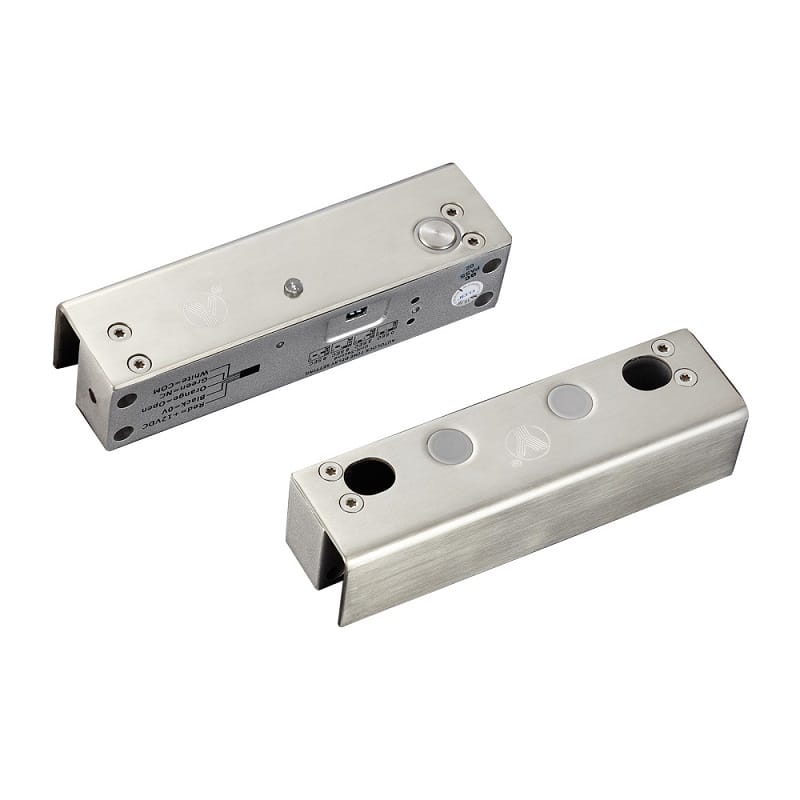

Electric Bolt for Fully Frameless Glass Door ( Fail Safe type )
See all products from elockAED 311.54 VAT included
Elock-B500U is an all-metal construction electric bolt .specially designed for fully frameless glass doors. The bolt of the lock is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design.
Product Code : SS10231
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Elock-B500U is an all-metal construction electric bolt .specially designed for fully frameless glass doors. The bolt of the lock is made of 304 stainless steel solid bar with 1000kg holding force and anti-burglar design. With the multiple designs of durable magnetic valve, special photoelectric control system, LED Indicator, Door statue signal output contact, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
Features
- 304 stainless steel solid bar
- 1000kg holding force and anti-burglar design
- Designs of durable magnetic valve
- Special Designed Tested to 500000 operations
Specifications
- Voltage : DC12V(DC24V)
- Standby Current : 180mA
- Solid Bolt : polishing housing, 1000kg Holding Force
- Suitable For : 12mm Electric Bolt For Fully Frameless Glass Door
- Signal Output : Door status Output, NC/COM
- Surface Temp : Low Temperature
- Induction Distance : 8mm
- Face place material : Stainless Stee
- Weight 1.36kg
