Honeywell – RS422 / RS485 Isolating Repeater DIN-Rail D1061S – China

Name: Honeywell - RS422 / RS485 Isolating Repeater DIN-Rail D1061S - China
SKU: SS152051
Price: 7432.93 AED
Availability: InStock

See all products from honeywell

AED 7,432.93 VAT included

Compare

Product Code : SS152051 Brand: Honeywell Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

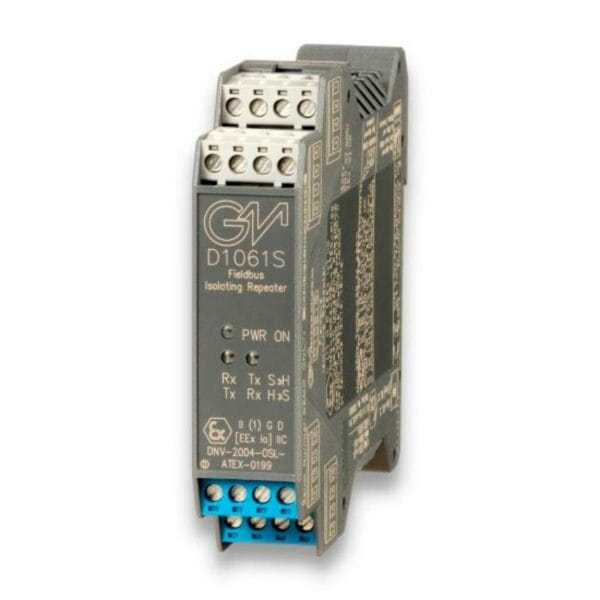

The DIN-Rail RS422 / RS485 Fieldbus Isolating Repeater type D1061S-077 is used to separate Intrinsically Safe RS422 / RS485 equipment located in Hazardous Area from a RS232 / RS422 / RS485 controller located in Safe Area. Transmission speed is DIP-switch adjustable from 1.2 Kbit/s up to 1.5 Mbit/s. Terminating impedance is DIP-switch selectable inside the unit (200 ? value) for both sides of communication lines (Hazardous Area and Safe Area side). RS422 / RS485 connection in Safe Area is provided both on terminal block and SUB D 9 poles female connector on the unit. RS232 connection is provided on SUB D 9 poles female connector only. The module also provides a shield terminal block for connecting cable shielding on Hazardous Area side.

Features

Input/Output from Zone 0 (Zone 20), installation in Zone 2
RS422 / RS485 Hazardous Area I.S. Signal
RS232 / RS422 / RS485 Safe Area Signal
Transmission speed up to 1.5 Mbit/s
Three port isolation, Input/Output/Supply
EMC Compatibility to EN61000-6-2, EN61000-6-4
In-field programmability by DIP Switch
250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier
