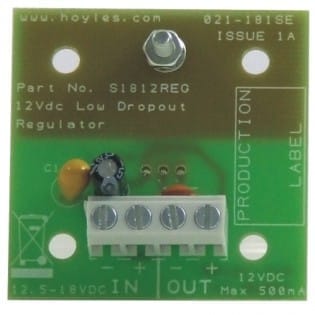

Hoyles S1812REG 12-18vdc LDO regulator module 12vdc 500mA output c/w pillars

Hoyles S1812REG 12-18vdc LDO regulator module 12vdc 500mA output c/w pillars. A 12vdc Low Drop Out Regulator module which will stabalise a PSU output of between 12.5 and 18vdc providing 12vdc at up to 500mA. The Low Drop Out function ensures that even if the input from the PSU drops to 12vdc, a minimum of 11.5vdc will be provided by the module.Specification

Led Current – N/A
Switch Contacts – SPCO 2A @30vdc
Supply Voltage- N/A
Supply Input Current – N/AVisual Indication – N/A
Integral Sounder Level – N/A
Tamper – N/A
Material – PCB Module
Dimensions – 45mm x 45mm x 14mm
Provided complete with nylon mounting pillars
Weight – 0.03kg
IP Rating – N/A
Approvals – CE and RoHs complaint
