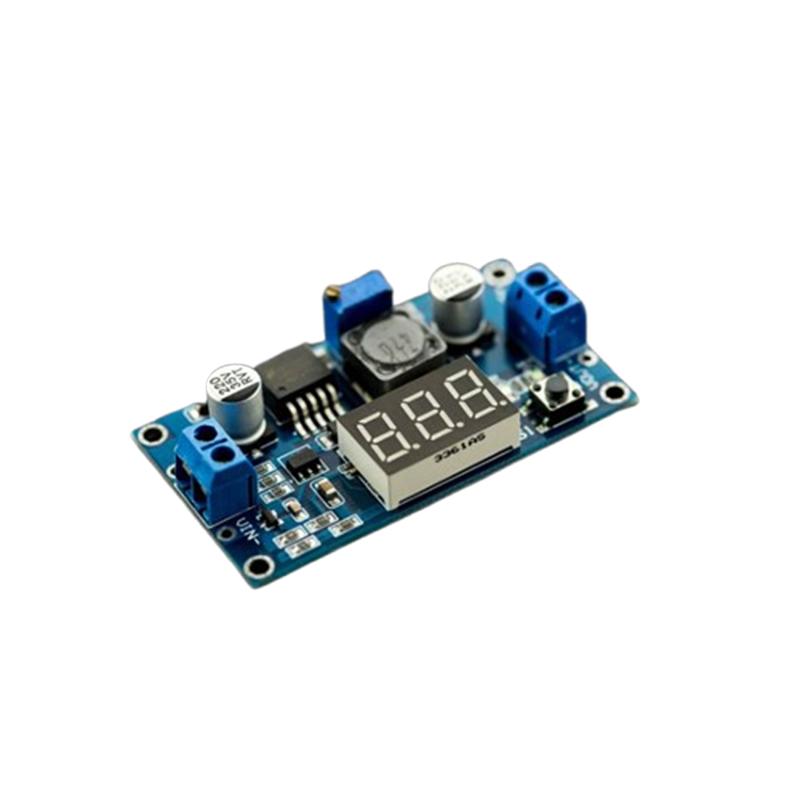

Adjustable DC-DC Buck Converter with Digital Display, 20w – CXCX0048
100 in stock
Product Code : SS154996
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
This is a 20W adjustable DC-DC buck converter module with digital display. It is based on LM2596 3A step-down voltage regulator and supports an input of 0~40V DC with an accuracy of ± 0.05V.
Features
- Supports self-calibration function to provide high-precision voltage output. (Recommended input voltage is maintained at 4.5V or more)
- Touch the button to switch the measurement input or output voltage, and an indicator shows which voltage is being measured.
- The display can be disabled if necessary. Hold the button for 2 seconds, and release the button to turn off the display
- With wire terminals, no soldering is necessary
- The input voltage is 4.0 ~ 40V. (The input voltage must be 1.5V higher than the output voltage)
- Continuously adjustable output voltage range of 1.25V ~ 37V. (The input voltage must be 1.5V higher than the output voltage)
- The Maximum output current is 3A, it is recommended to use within 2.0A, higher currents will need a heatsink to dissipate heat.
- The output power is 20W. For more than 15W a heatsink is recommended.
- The unit offers high conversion efficiency, with an average of 88%
- The unit includes reverse polarity protection, overheating protection and short circuit protection
Specifications
- Model: CXCX0048
- Input Voltage: 4.0 ~ 40V
- Output Voltage: 1.25V ~ 37V
- Output Power: 20W
- Output Current: 3A
- Mounting Dimensions: 6.1 * 3.1cm/ 2.4 * 1.22 inches (L x W)
- Dimension: 6.6 * 3.6 *1.2cm/2.59 * 1.42 * 0.47 inches
