Aidalarm A600LKITM Mains Powered Disabled Toilet Alarm Kit

Aidalarm A600lkitm Aidalarm Mains Powered Disabled Toilet Alarm Kit. This mains powered kit meets the requirements for emergency signalling systems for disabled persons and is fully compliant with BS8300 and the requirements of the Disability Discrimination Act. Everything is provided in the kit (except cable and fixings) to deliver an effective, fully compliant, simple to install and simple to use system.

Note: The LED flash rates on this product range from 1Hz to 4Hz depending on alarm tone chosen.This mains powered kit comprises:

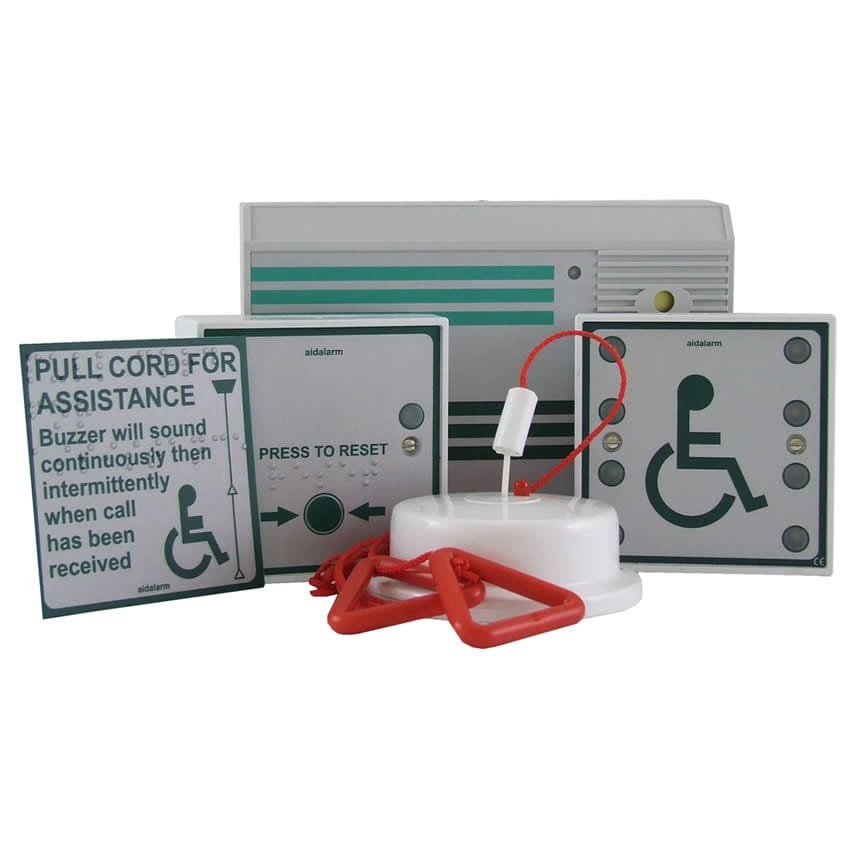

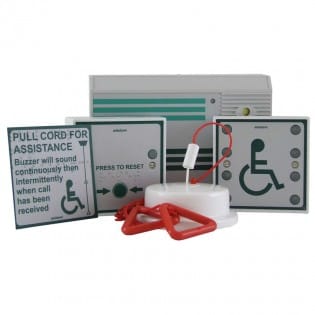

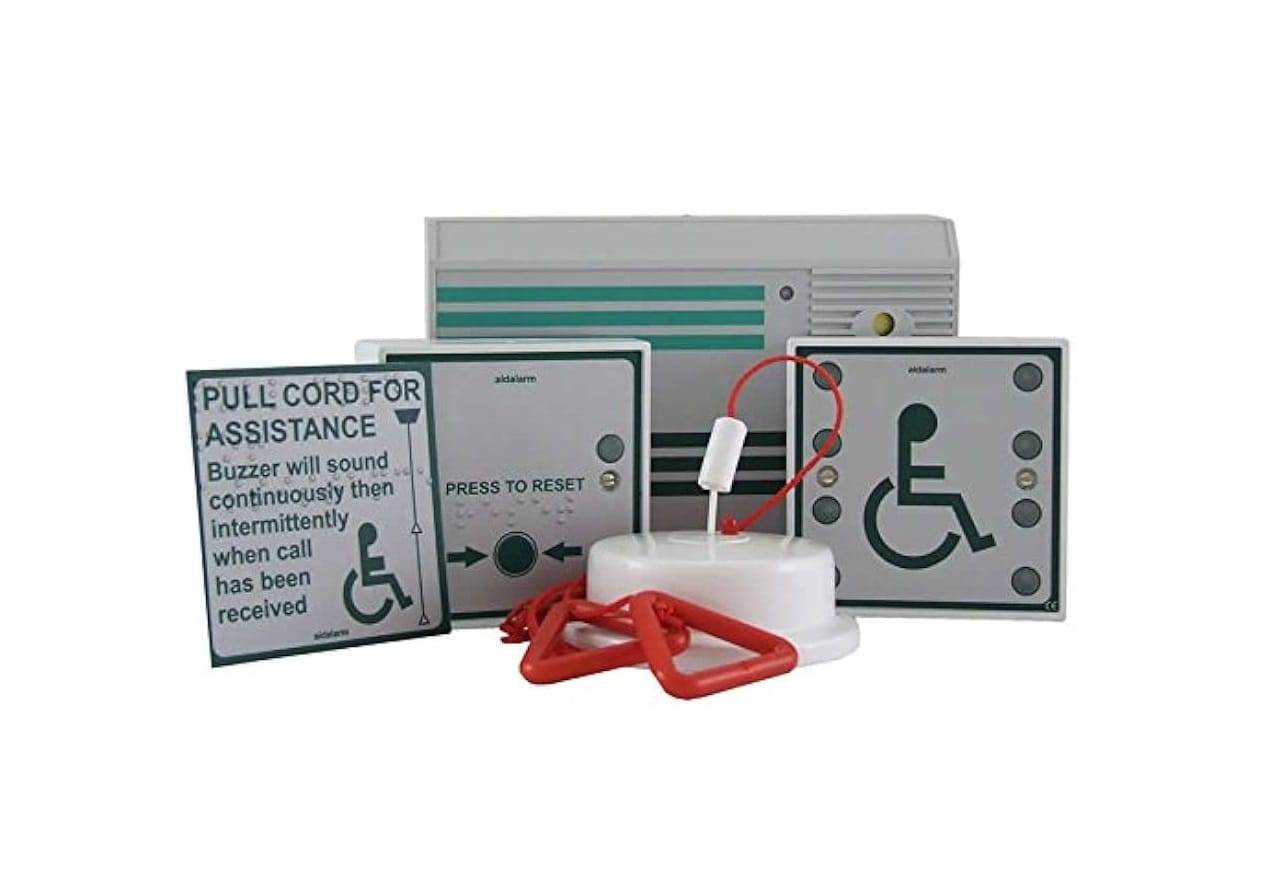

1 x A600L Aidalarm controller, 1 x S1600-R RED pull cord, 1 x Pull cord instruction label with braille text, 1 x S1708A reset button with braille text, 1 x S1778A overdoor light/sounder with wheel chair symbol and 6 x AA alkaline batteries

How the Aidalarm works

1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.

2. Ceiling pull cord and optional Dado panic strip or call buttons are situated in the toilet or other area where assistance may be required.

3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.

4. The call can be silenced by pressing the button on the front of the control panel.

5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.

6. Should the cord be pulled again while in the silenced state, the system will call again.

7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.

8. The system can only be reset by the Press to Reset button located at or near the point of call.
