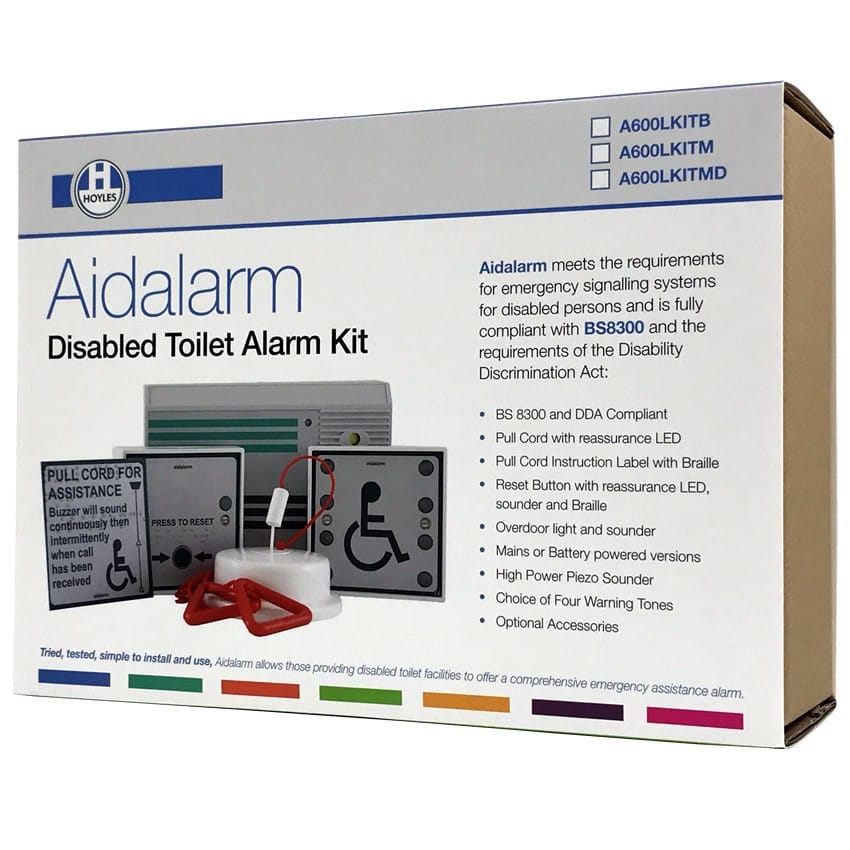

Aidalarm A600lkitmd Aidalarm Disabled Toilet Alarm Kit with Panic Strip

Aidalarm A600lkitmd Aidalarm Disabled Toilet Alarm Kit with Panic Strip. This mains powered kit meets the requirements for emergency signalling systems for disabled persons and is fully compliant with BS8300 and the requirements of the Disability Discrimination Act. Everything is provided in the kit (except cable and fixings) to deliver an effective, fully compliant, simple to install and simple to use system.

Could also be used as a emergency assistance alarm in changing rooms, interview rooms, reception areas etc.

Can be powered by 12vdc requires a minimum of 250mADDA & BS8300 Compliant
Controller with High Power Piezo Sounder
Four selectable Warning Tones
Mains Powered with Standby batteries
Audible & Visual Signalling and indication
Volt free changeover relay contacts enable remote signalling output
Control panel button configurable functions – Silence, Reset or Disabled
Grey and Red RPD01000 1m water proof panic stripThis mains powered kit comprises:

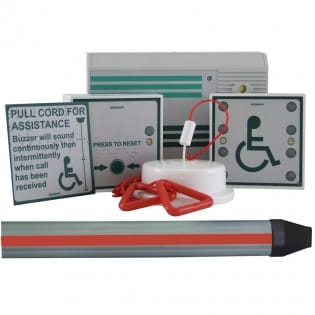

1 x A600L Aidalarm controller, 1 x S1600-R RED pull cord, 1 x Pull cord instruction label with braille text, 1 x S1708A reset button with braille text, 1 x S1778A overdoor light/sounder with wheel chair symbol,1 x RPD01000 1m waterproof Dado Panic Strip and 6 x AA alkaline batteries

How the Aidalarm works

1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.

2. Ceiling pull cord and Dado panic strip are situated in the toilet or other area where assistance may be required.

3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.

4. The call can be silenced by pressing the button on the front of the control panel.

5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.

6. Should the cord be pulled again while in the silenced state, the system will call again.

7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.

8. The system can only be reset by the Press to Reset button located at or near the point of call.
