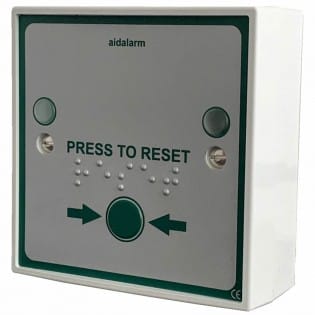

Aidalarm S1708A Aidalarm Press to Reset Button with Braille text

Aidalarm S1708A Aidalarm Press to Reset Button with Braille text. A wall mounting Press to Reset button with Braille text plus 2 high brightness yellow LEDs and sounder for caller reassurance. Enclosed in white ABS plastic, complete with a single gang surface mounting box. Flush fitting is also possible with a standard single gang back box. This is a non-latching unit with N.O. contacts specifically designed for use with our Aidalarm Disabled Toilet Alarm systems. The LEDs and sounder have separate terminals. The LED and sounder current limit resistor is provided for 12 vdc operation. The button contacts are rated at 50ma 24vdc resistive, N.O. press to close.
They should NOT be used for switch feeds to door strikes or mag locks etc.Specification

Led Current – 35mA@12vdc
Sounder Current -25m@12vdc
Switch Contacts – 50mA@24vdc
Visual Indication – 2 x High brightness yellow LEDs
Integral Sounder Level – 70db @10cm
Tamper – N/A
Material – White ABS
Weight – 0.13kg

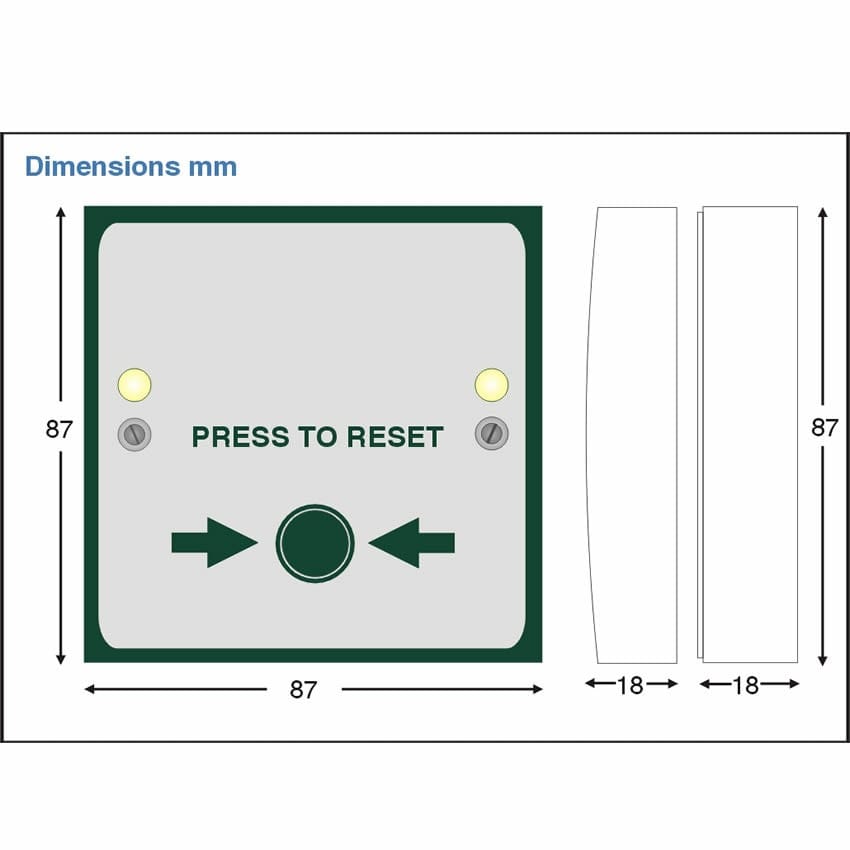

87mm x 87mm x 36mm (Surface mount)
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
Back box supplied for surface mount
Flush mount 18mm onto standard galvanised box (Not supplied)
Mark resistant decal
