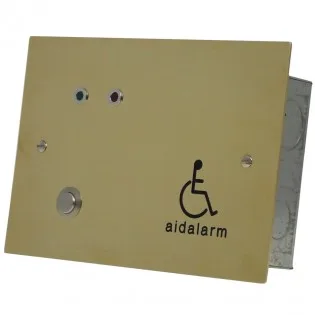

Hoyles A600FBR Disabled Person Toilet Alarm Polished Brass Controller

Hoyles A600FBR Disabled Person Toilet Alarm Polished Brass Controller. Our Polished Brass, flush mount Disabled Person Toilet Alarm has been designed for more prestigious locations. Aidalarm meets the requirements for emergency signalling systems for Disabled Person Toilet Alarms and is fully compliant with BS8300 and the requirements of the Disability Discrimination Act.

This unit is compatable with Hoyles Call Equipment Range.The unit requires either a S1600-R or S1600AL-R ceiling mounted RED pull cord, (optional) Dado panic strip RPD01000 or wall mounted call button S1705BR. Additionally, a S1708BR reset button must be fitted to enable the system to be reset at or near the point of calling. An S1778BR overdoor light /sounder can be added to give warning in the immediate area.

Requires a separate 12vdc PSU minimum of 250mA , see PSU-12/2AB, if battery backup is required see BAT12V3300LABS 8300 Compliant & DDA Compliant
High Power Piezo Sounder
12 Vdc Powered with integral power on LED
Audible & Visual Signalling and indication
Four selectable Warning Tones
Volt free changeover relay contacts enable remote signalling output
Control panel configurable functions – Silence, Reset or Disabled

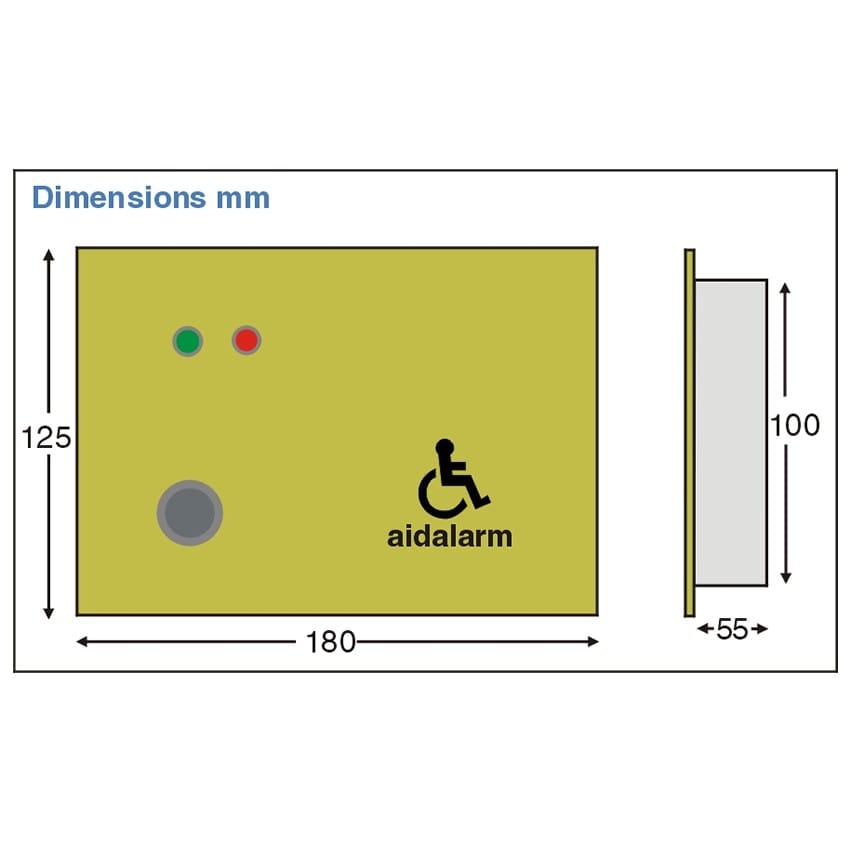

Dimensions – 180 x 125 x 55 x 1.5mm

Please note: All Polished Brass fittings are supplied with stainless buttons and LED. The LED flash rates on this product range from 1Hz to 4Hz depending on alarm tone chosen. How the Aidalarm works

1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.

2. A ceiling pull cord, optional Dado panic strip or call buttons are situated in the toilet or other area where assistance may be required.

3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.

4. The call can be silenced by pressing the button on the front of the control panel.

5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.

6. Should the cord be pulled again while in the silenced state, the system will call again.

7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.

8. The system can only be reset by the Press to Reset button located at or near the point of call.
