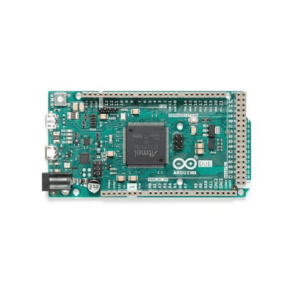

Arduino - Due Board, A000062 - DEDB0024
AED 290.23 VAT included
Arduino – Board Nano 33 BLE Sense with Headers – DEDB0022
See all products from arduinoAED 343.98 VAT included

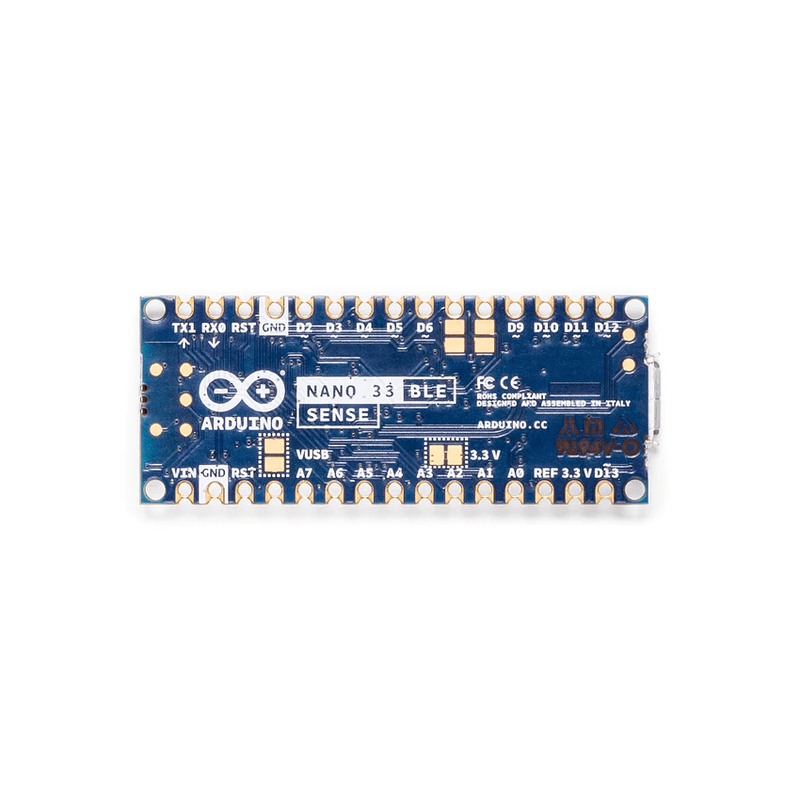

Arduino – Board Nano 33 BLE Sense with Headers – DEDB0022
100 in stock
Product Code : SS154696
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Nano 33 BLE Senses reduced power consumption, compared to other same size boards, together with the Nano form factor opens up a wide range of applications. This allows the design of wearable devices and gesture based projects that need to communicate to other devices at close range. The Arduino Nano 33 BLE Sense is ideal for interactive automation projects thanks to the multiprotocol BT 5.0 radio.
Features
- Small (48mm x 18mm), powerful, Bluetooth connected and with all the sensors you may need to design innovative applications
- Built around the NINA B306 module for BLE and Bluetooth 5 communication; the module is based on Nordic nRF 52840 processor that contains a powerful Cortex M4F
- The boards architecture is fully compatible with Arduino IDE Online and Offline; it has a 9 axis Inertial Measurement Unit (IMU), temperature, pressure, humidity, light, color and gesture sensors, plus a microphone that are managed through specialised Arduino libraries
Specifications
- Brand: Arduino
- Model: DEDB0022
- Operating Voltage: 3.3V
- Input Voltage (limit): 21V
- DC Current per I/O Pin: 15 mA
- Clock Speed: 64 MHz
- CPU Flash Memory: 1MB
- SRAM: 256KB
- Digital I/O Pins: 14, with all digital pins capable of PWM
- UART: 1
- SPI: 1
