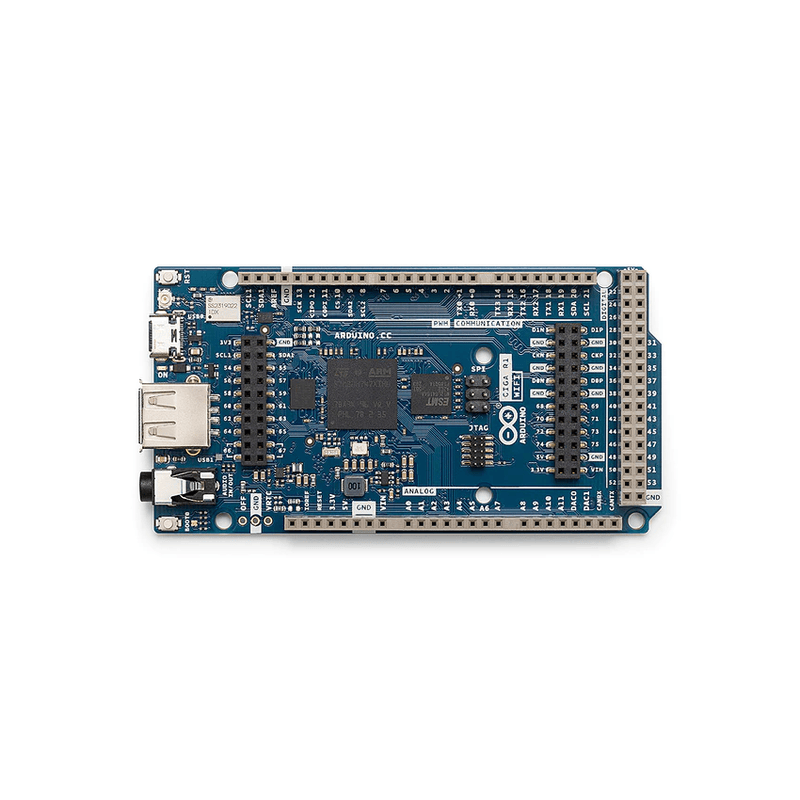

Arduino – Giga R1 WiFi Board, ABX00063 – DEDB0553
See all products from arduinoAED 487.07 VAT included
Arduino – Giga R1 WiFi Board, ABX00063 – DEDB0553
100 in stock
Product Code : SS154742
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Arduino GIGA R1 WiFi is crafted for creative makers aiming to elevate their projects. It’s a versatile tool for gamers, artists, sound engineers, and innovators, offering advanced functionality in an affordable package with the same form factor as the popular Mega and Due boards.
Features
- Microcontroller (STM32H747XI): Equipped with a dual-core 32-bit microcontroller, it enables two cores (a Cortex®-M7 at 480 MHz and a Cortex®-M4 at 240 MHz) to operate concurrently. This allows you to run Micropython on one core and Arduino on the other, offering maximum flexibility.
- Wireless Communication (Murata 1DX): Whether you require Wi-Fi® or Bluetooth®, the GIGA R1 WiFi handles both. You can easily connect to the Arduino IoT Cloud to monitor your projects remotely, and the ATECC608A secure element ensures your communications remain safe.
Specifications
- Brand: Arduino
- Model: DEDB0553
- Part: ABX00063
- Microcontroller: STM32H747XI dual-core Cortex®-M7 + M4, 32-bit low-power Arm® MCU
- Radio Module: Murata 1DX dual WiFi (802.11b/g/n 65 Mbps) and Bluetooth®
- Secure Element: ATECC608A-MAHDA-T
- USB Ports: USB-C® for Programming / HID, USB-A for Host (enabled with PA_15)
- Digital I/O Pins: 76
- Analog Input Pins: 12
- DAC Pins: 2 (DAC0/DAC1)
- PWM Pins: 12
- Miscellaneous Pins: VRT & OFF pin
- Communication Protocols: UART: 4x, I2C: 3x, SPI: 2x, CAN: Yes (requires an external transceiver)
- Connectors: Camera: I2C + D54-D67, Display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75, Audio Jack: DAC0, DAC1, A7
- Power: Circuit operating voltage: 3.3V, Input voltage (VIN): 6-24V, DC current per I/O pin: 8 mA
- Clock Speed: Cortex® M7: 480 MHz, Cortex® M4: 240 MHz
- Memory: 2MB Flash, 1MB RAM
