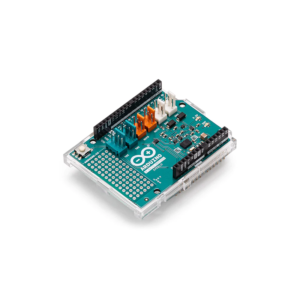

Arduino - 9 Axes Motion Shield Adapter - DEDB0013 AED 177.45

Next product

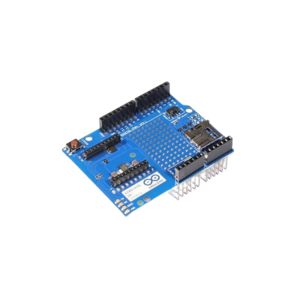

Arduino - Wireless SD Sheild, A000065 - DEDB0032 AED 71.06

Click to enlarge

Arduino – Proto Shield Rev3 UNO Size, TSX00083 – DEDB0018

Name: Arduino - Proto Shield Rev3 UNO Size, TSX00083 - DEDB0018
SKU: SS155013
Price: 88.73 AED
Availability: InStock

See all products from arduino

AED 88.73 VAT included

100 in stock

Compare

Product Code : SS155013 Brand: Arduino Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Proto Shield Rev3 (Uno Size) is designed to facilitate the creation of custom circuits for your Arduino projects. It offers a versatile prototyping area for both Through-Hole (TH) and Surface Mount Device (SMD) components, allowing you to easily solder ICs and other components for testing with your Arduino board.

Features

Arduino Pinout Compatibility: It aligns with the 1.0 Arduino pinout standard.
ICSP Connector Footprint: For interfacing with ICSP signals.
LEDs and Resistors Footprint: Includes footprints for two LEDs and resistors.
Power Lines: Features IOREF and GND power lines.
SPI Signals Pads: Offers breakout pads for SPI signals, catering to boards that have SPI only on the ICSP header, like the Arduino Zero.
SMD Footprint: Designed to accommodate a 24-pin SOIC integrated circuit with a 50 mils pitch.
Physical Dimensions: The maximum length and width of the Proto Shield PCB are 2.7 inches and 2.1 inches, respectively, with three screw holes for attachment to surfaces or cases.
