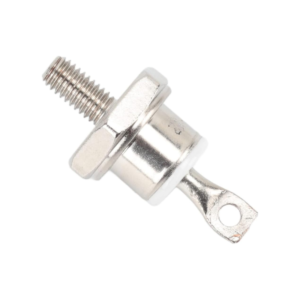

B E - 40HF120 High Frequency Diode Module 1200V 40A, High-Power Rectification Components - SDDX0038 AED 40.94

Next product

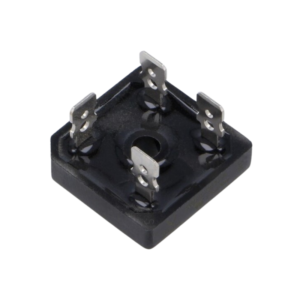

B E - GBPC3512A Bridge Rectifier Single Phase Diode Module for Power Conversion - SDBR0020 AED 71.66

besomi-electronics-26mb160a-high-efficiency-rectifier-bridge-diode-module-16a-1600v-sdbr0024-1

Click to enlarge

B E – 26MB160A High Efficiency Rectifier Bridge Diode Module, 16A 1600V – SDBR0024

Name: B E - 26MB160A High Efficiency Rectifier Bridge Diode Module, 16A 1600V - SDBR0024
SKU: SS155497
Price: 32.76 AED
Availability: InStock

See all products from b-e

AED 32.76 VAT included

100 in stock

Compare

Product Code : SS155497 Brand: B E Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The 26MB160A is a high-performance single-phase bridge rectifier designed for industrial and consumer-level applications requiring reliable rectification and efficient power conversion. It features a 1600V peak reverse repetitive voltage (VRRM) and 25A forward average current (If), making it ideal for use in general-purpose rectification, power supplies, and instrumentation. With a robust D-34 package, this rectifier can handle high surge currents of up to 400A, ensuring stability during operation. The electrically insulated case allows for simple bolt-down installation to a heatsink. The 26MB160A is perfect for high-voltage environments, providing excellent power handling and thermal stability with an operating temperature range of -55°C to +150°C. This bridge rectifier is equipped with universal, 3-way terminals for soldering or push-on connections, ensuring versatility and ease of installation. It offers a forward voltage drop of up to 1.25V and minimal reverse leakage current, making it an efficient choice for various rectification needs.

Features

High Peak Reverse Voltage: Handles up to 1600V, ensuring reliable performance in high-voltage rectification applications.
High Forward Average Current: Capable of carrying up to 25A forward current, ideal for industrial and heavy-duty power supplies.
Efficient Heat Dissipation: Designed with a bolt-down, electrically insulated D-34 package that allows for secure attachment to heatsinks, improving heat management during operation.
Surge Current Protection: Handles up to 400A surge current at 50Hz, protecting against sudden power spikes and ensuring system stability.
Low Forward Voltage Drop: Features a low forward voltage drop of 1.25V, optimizing energy efficiency in power conversion.
Wide Operating Temperature Range: Performs reliably in extreme temperatures from -55°C to +150°C, suitable for use in various environmental conditions.
