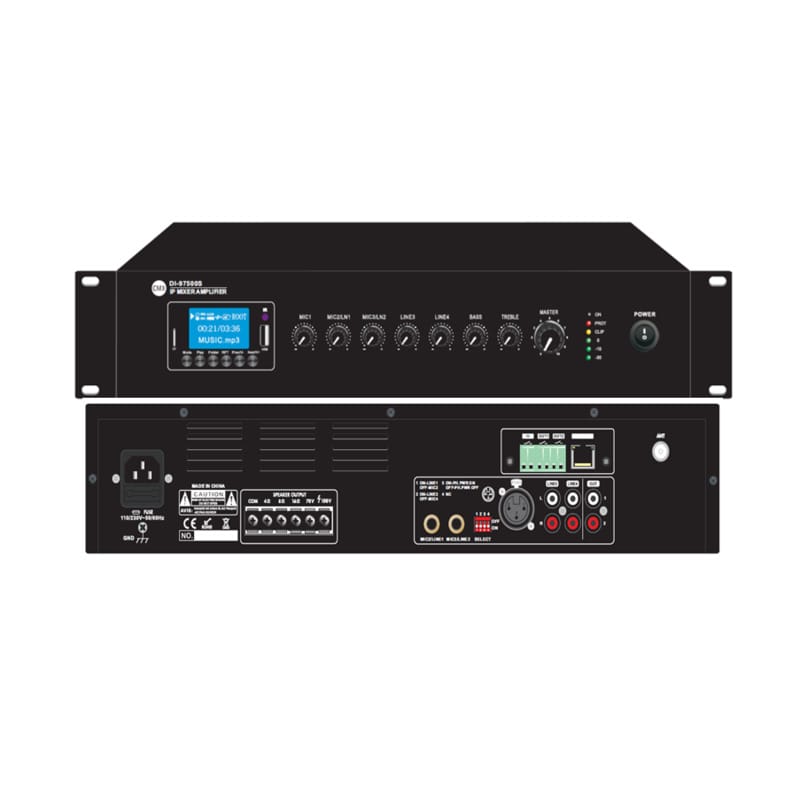

CMX – IP Network Amplifier, 19inch – DI-9760
Product Code : SS149768
Brand: CMX
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The IP Network Amplifier combines the IP audio decoder/IP streaming and 100V/8 Ohm amplifier together. The IP network amplifier is of 19? rack mount design, it is built-in amplifier rated output at 60W, 120W, 240W, 350W to 500W. The IP network technology also allow this IP network amplifier could be installed anywhere even near to the speaker to save cable wiring from control room to each zone. The advantages of the network audio system are: long distance transmission, multiple channel audio matrix, simultaneous group programs & non-dedicated network wiring.
Features
- IP network mixer amplifier with audio decoder
- Huge system capacity of 6,000 zones paging and multiple BGM system
- IP based public address system over LAN/WAN or Internet
- Minimum cable connection by using existing network framework
- Non-dedicated network audio system solution
- Economy network PA system for multiple room and multiple program applications
- IP network decoder built-in 100V/8 Ohm Amplifier
- Rated power output of 60W, 120W, 240W & 350W
- Mic1-3 inputs and line1-2 inputs and one line output
Specifications
- Brand: CMX
- Code: DI-9760
- Power Output: 60W
- Protocol Support: TCP/IP, UDP, IGMP (group broadcasting)
- Transmit Speed: 10/100Mbps
- Audio Format: 16 digit stereo CD tone
- Frequency Response: 20Hz~16KHz
- THD: ó0.3%
- S/N Ratio: ò85dB
- Speaker Output: 100V/70V & 4-16 Ohm
- Working Temp: -5? to +40?
- Humidity: 10% ~ 90%
- Power Consumption: 95W
- Power Supply: AC220V, 50-60Hz
