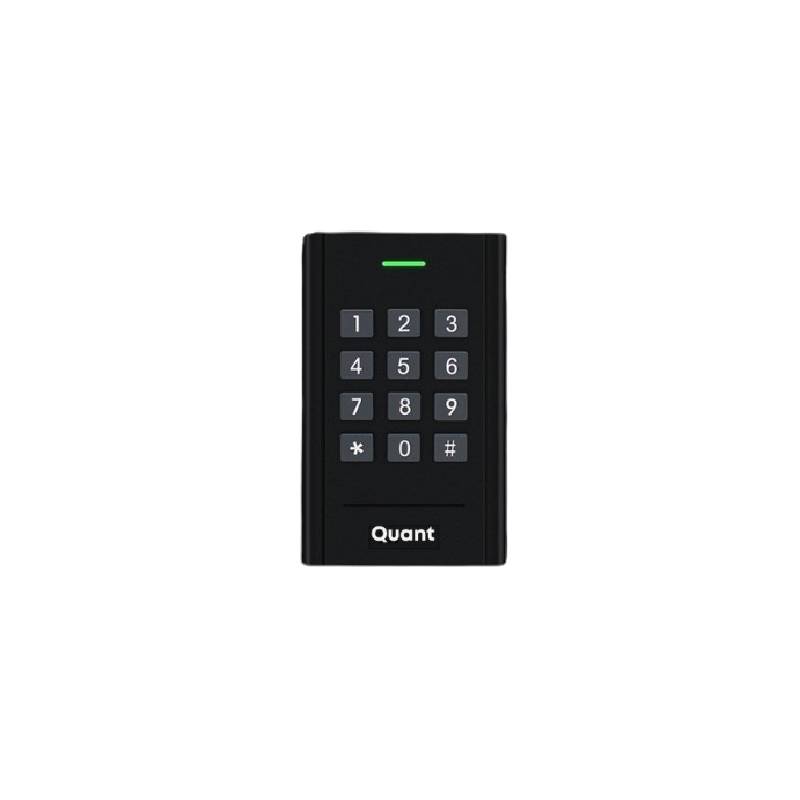

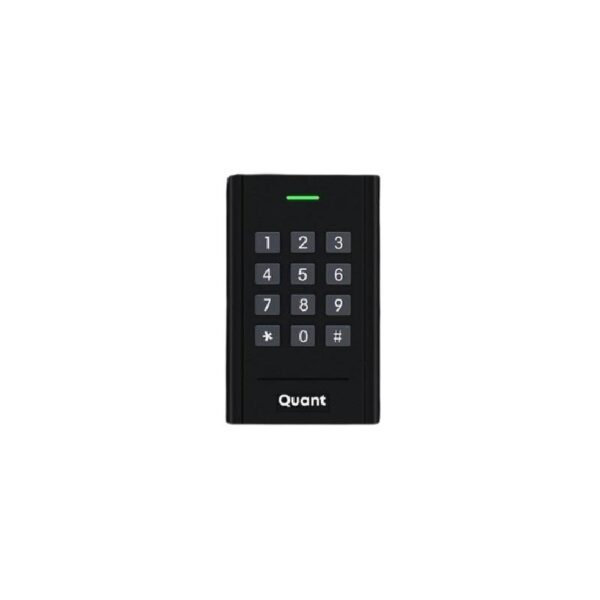

Quant – OSDP/Weigand Multi Technology Keypad Reader, 120mm x 75mm x 20mm – Q-XK5-RX

Name: Quant - OSDP/Weigand Multi Technology Keypad Reader, 120mm x 75mm x 20mm - Q-XK5-RX
SKU: SS154500
Price: 458.85 AED
Availability: InStock

See all products from quant

AED 458.85 VAT included

Compare

Product Code : SS154500 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Q-XK5-RX is a high-performance OSDP and Wiegand-compatible keypad reader designed for secure access control systems. It is built to withstand harsh environmental conditions with its IP66 waterproof rating, making it suitable for both indoor and outdoor installations. The reader supports a wide range of card types, including 125kHz HID, EM, and 13.56MHz smart card technologies such as NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, and CPU cards, providing versatility in access credentials. This makes the Q-XK5-RX a flexible solution for various access control systems, both modern and legacy.

Features

Enhanced Security and Flexibility: The device offers various PIN output options, including 4-bit, 8-bit, or virtual card number, allowing for enhanced security and convenient user authentication. This feature makes the reader adaptable to various security levels and user requirements.
Future-Proof Design: Designed to accommodate both existing and emerging access technologies, the Q-XK5-RX ensures a smooth transition from older systems to more advanced, secure solutions. This reduces the need for frequent hardware upgrades and ensures long-term system compatibility.
Flexible Protocol Compatibility: The Q-XK5-RX supports both OSDP and Wiegand protocols, offering flexibility to integrate with modern and legacy systems. OSDPs encrypted communication ensures high security, while Wiegand compatibility allows for seamless upgrades without the need to replace existing infrastructure.
Durable in Harsh Conditions: Featuring an IP66 waterproof rating, the Q-XK5-RX is designed to withstand dust, rain, and extreme weather, making it ideal for outdoor installations in challenging environments. This durability ensures long-term reliability and reduces maintenance costs.
Enhanced Security and Flexibility: The device offers various PIN output options, including 4-bit, 8-bit, or virtual card number, allowing for enhanced security and convenient user authentication. This feature makes the reader adaptable to various security levels and user requirements.
Future-Proof Design: Designed to accommodate both existing and emerging access technologies, the Q-XK5-RX ensures a smooth transition from older systems to more advanced, secure solutions. This reduces the need for frequent hardware upgrades and ensures long-term system compatibility.

Specifications

Brand: Quant
Model: Q-XK5-RX
Operation Voltage: 9-18V DC
Protocols: OSDP (Open Supervised Device Protocol) and Wiegand
Card Compatibility: 125kHz: HID, EM and 13.56MHz: NXP Mifare, Mifare Plus, Mifare DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, CPU Cards
Keypad Transmission Format: 4 bits (factory default) and 8 bits or virtual card number can be set
Waterproof Rating: IP66
Reading Range: 125kHz cards: 2-5 cm / 13.56MHz cards: 2-6 cm
Dimensions: 120mm x 75mm x 20mm
Net Weight: 200g
