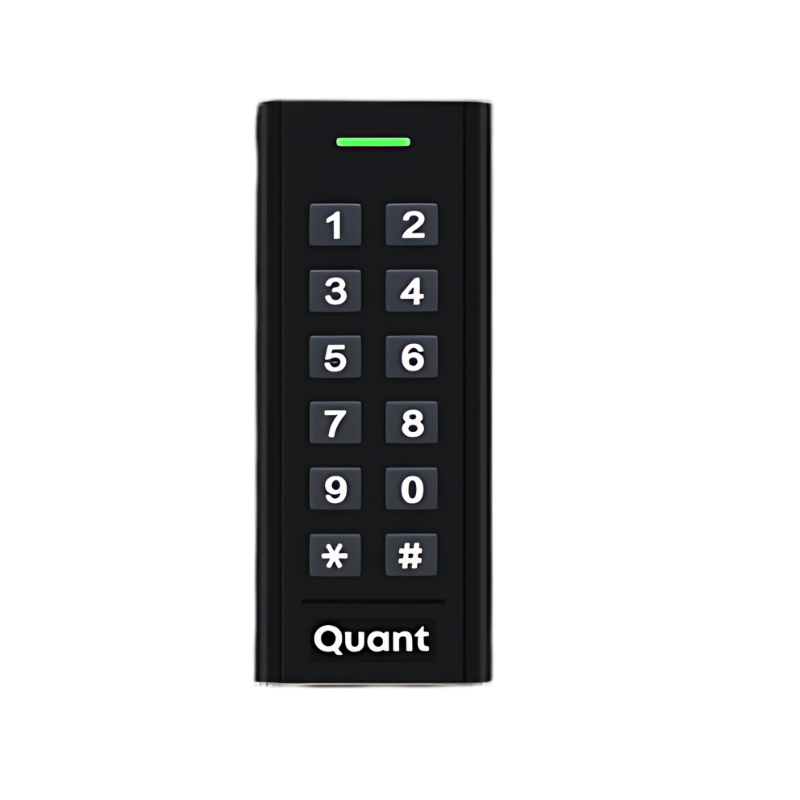

Quant – OSDP-Wiegand Keypad Reader, 120mm x 50mm x 20mm – Q-XK6-RX

Name: Quant - OSDP-Wiegand Keypad Reader, 120mm x 50mm x 20mm - Q-XK6-RX
SKU: SS154501
Price: 434.70 AED
Availability: InStock

See all products from quant

AED 434.70 VAT included

Compare

Product Code : SS154501 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Q-XK6-RX OSDP Keypad Reader is a highly versatile and secure access control reader designed to meet modern security needs. It supports both OSDP and Wiegand protocols, making it compatible with both modern and legacy systems. Featuring an IP66 waterproof rating, it is robust enough for outdoor installations and can withstand harsh environmental conditions. The reader supports a wide range of RFID card technologies, including both 125KHz and 13.56MHz cards, such as HID, EM, Mifare, and CPU cards. In addition, it offers flexible PIN output formats, ensuring smooth integration with different access control systems.

Features

Dual Compatibility (OSDP & Wiegand): The Q-XK6-RX supports both OSDP (Open Supervised Device Protocol) and Wiegand protocols, allowing for seamless integration into both modern and legacy access control systems. This ensures future-proofing while providing secure encrypted communication in newer systems.
Wide Card Compatibility: The reader supports a broad range of RFID technologies, including 125KHz HID, EM, and 13.56MHz card types like Mifare, Mifare Plus, and DesFire. This flexibility makes it suitable for diverse environments, from low-security to high-security applications.
Outdoor Durability: With an IP66 waterproof rating, the reader.

Specifications

Brand: Quant
Model: Q-XK6-RX
Protocols Supported: OSDP (Open Supervised Device Protocol) /Wiegand (Optional for backward compatibility)
Ingress Protection: IP66 (Dust-tight, water-resistant)
Card Compatibility: 125KHz: HID, EM 13.56MHz: NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, and CPU cards
PIN Output Formats: 4 bits, 8 bits, or virtual card number
Operating Voltage: 12-18V DC
Operating Temperature: -20°C to +60°C (suitable for indoor and outdoor environments)
Dimensions: 120mm x 50mm x 20m
