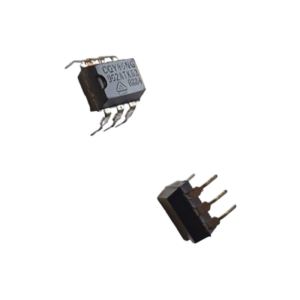

Cqy80Ng: Transistor Output Optocouplers - SCIX0783
AED 34.13 VAT included
Next product

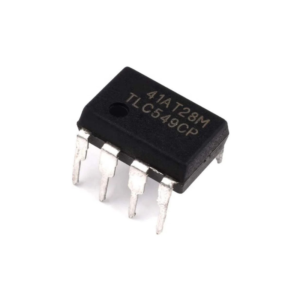

Tlc549Cp Analog To Digital Converters - SCIX0980
AED 30.03 VAT included

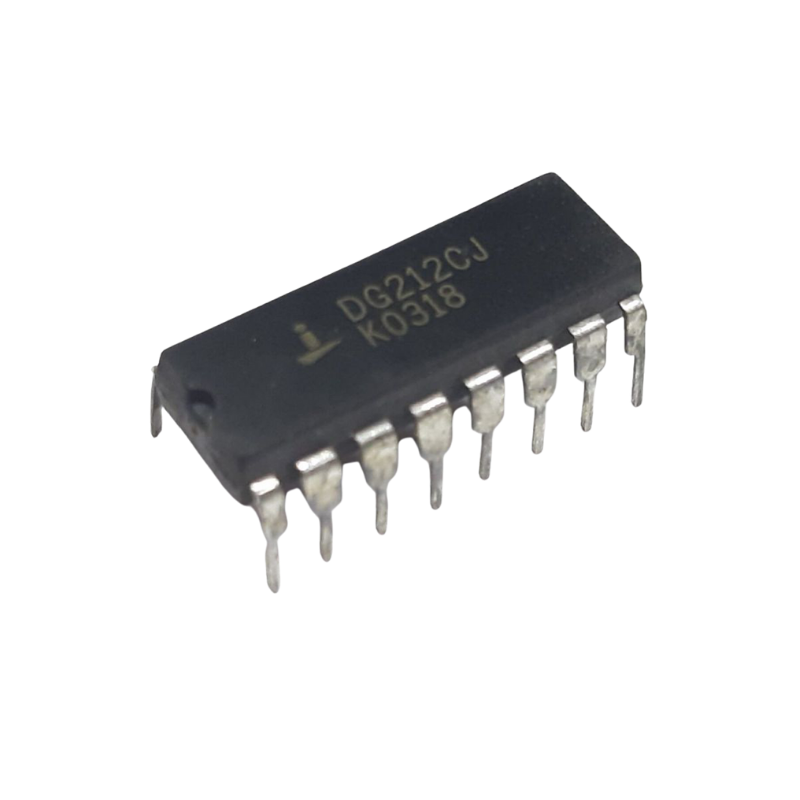

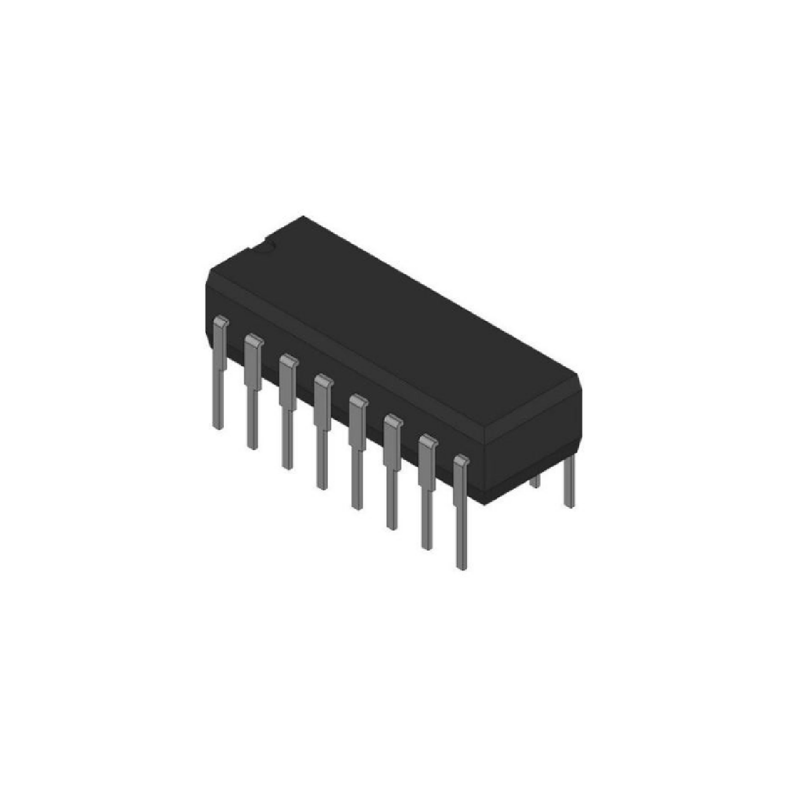

Dg212Cj Ic Switch Quad Spst 16Dip – SCIX0843
AED 36.86 VAT included
Dg212Cj Ic Switch Quad Spst 16Dip – SCIX0843
100 in stock
Product Code : SS155219
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The DG212CJ-DIP is a quad CMOS analog switch IC designed for high-performance analog and digital signal switching applications. Each of the four SPST switches operates independently, offering flexible configurations for multiplexing, signal routing, and gating. With a low on-state resistance of 175O (max), the DG212CJ ensures minimal signal loss and distortion, making it ideal for precision applications.
The DG212CJ operates with a wide supply voltage range of ±18V or +36V, supporting a variety of unipolar and bipolar systems. Its compact 16-pin DIP package makes it easy to integrate into standard PCB designs, and the robust design ensures reliable operation in industrial and commercial applications, such as audio processing, instrumentation, and data acquisition systems.
Features
- Quad SPST Configuration: Includes four independent Single Pole Single Throw (SPST) switches for versatile signal switching.
- Wide Voltage Range: Operates with ±18V or +36V supply, supporting both unipolar and bipolar signal applications.
- Low On-State Resistance: Ensures minimal signal loss with a maximum RDS(on) of 175O.
- High Linearity: Ensures precise analog signal transmission with low distortion.
- Compact 16-Pin DIP Package: Standard through-hole design for easy integration and prototyping.
- Wide Operating Range: Functions reliably in temperatures ranging from 0°C to +70°C.
Specifications
- Model: SCIX0843
- IC Type: Quad SPST CMOS Analog Switch
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Related products
Close
Round Momentary Push Button Switch Orange, 24V – SRSX0009
Round Momentary Push Button Switch Orange, 24V - SRSX0009
Close
Gate NAND 1CH 8-INP 14DIP, HEF4068BPIC – SCIx0354
Gate NAND 1CH 8-INP 14DIP, HEF4068BPIC - SCIx0354
Close

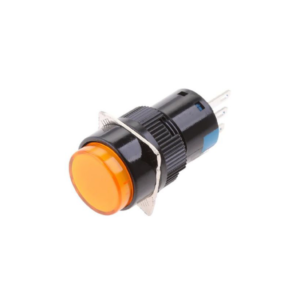

New Lon0167 DC 24 Featured ? Orange Light reliable efficacy Round Momentary Push Button Switch(id:f2f e6 b4 341) – SRSX0009
New Lon0167 DC 24 Featured ? Orange Light reliable efficacy Round Momentary Push Button Switch(id:f2f e6 b4 341) - SRSX0009
Close
Toggle Switches 1TL1-2 ON/OFF – SRSX0116
Toggle Switches 1TL1-2 ON/OFF - SRSX0116
Close
B E – Momentary Push Button Switch, Red Actuator – SRSX0305
B E - Momentary Push Button Switch, Red Actuator - SRSX0305
Close
Waterproof Microswitch, 10A 250Vac Az-7312 Az-7311 Az-7121 Az-7310 Tz-7141, Limit Switch Small Horizontal Roller Lever (Color: Az-7120) – SRLS0013
Waterproof Microswitch, 10A 250Vac Az-7312 Az-7311 Az-7121 Az-7310 Tz-7141, Limit Switch Small Horizontal Roller Lever (Color: Az-7120) - SRLS0013
Close

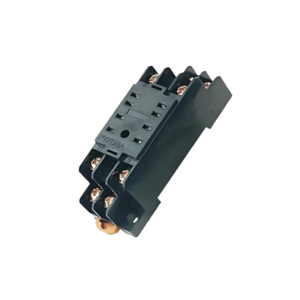

Relay Socket 8 Position Din Rail, PYF08A – SRRS0006
