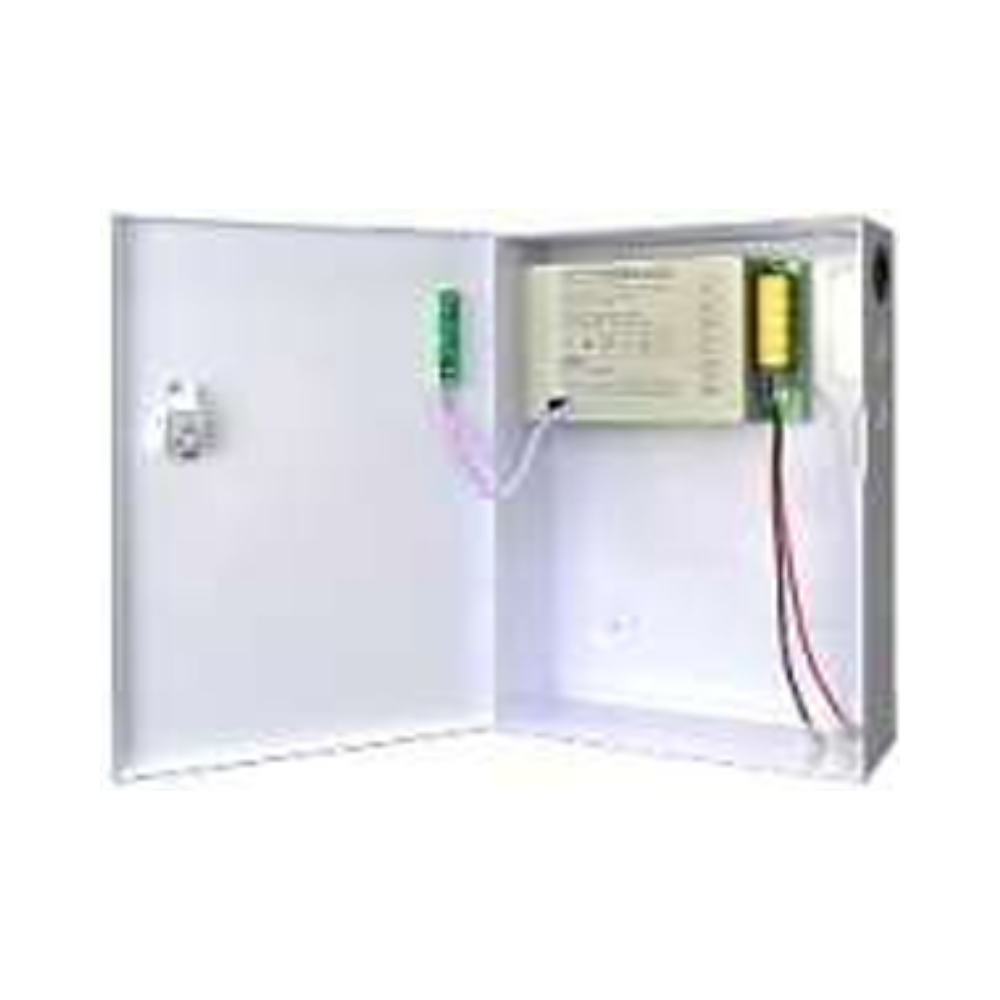

Elock – El-Ups2402-01Bb Ups Power Supply 24Vdc 2A With Ac & Battery Fail Relay Output – El-Ups2402-01Bb
See all products from elockAED 304.29 VAT included
24vdc 2a ups power supply with built-in battery charger and ac/battery fail relay outputs for monitored backup power.
Product Code : SS156270
Brand: Elock
Approved by : [woo_pro_badges_extended]Brand: ELOCK
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The elock el-ups2402-01bb is a compact 24vdc ups power supply designed for 24v security and access control equipment. It provides regulated 24vdc up to 2a, includes integrated battery charging for a 24v battery bank, and offers relay outputs for ac fail and battery fail for supervision and alarm integration.
Features
- regulated 24vdc output for 24v controllers and security peripherals
- built-in battery charging for backup operation during mains failure
- ac fail relay output for supervision and alarm monitoring
- battery fail relay output for battery status monitoring
- battery fail relay output for battery status monitoring
Specifications
- brand: elock
- model: el-ups2402-01bb
- input: 190–265 vac, 50–60 hz
- output: 24 vdc, 2 a
- status outputs: ac fail relay + battery fail relay (dry contact)
- battery charging: charger for 24v battery bank (2×12v sla in series)
- protection: overload protection
- adjustment: output voltage adjustment
- installation: panel/cabinet mount
- application: monitored 24vdc ups supply for access control and security
