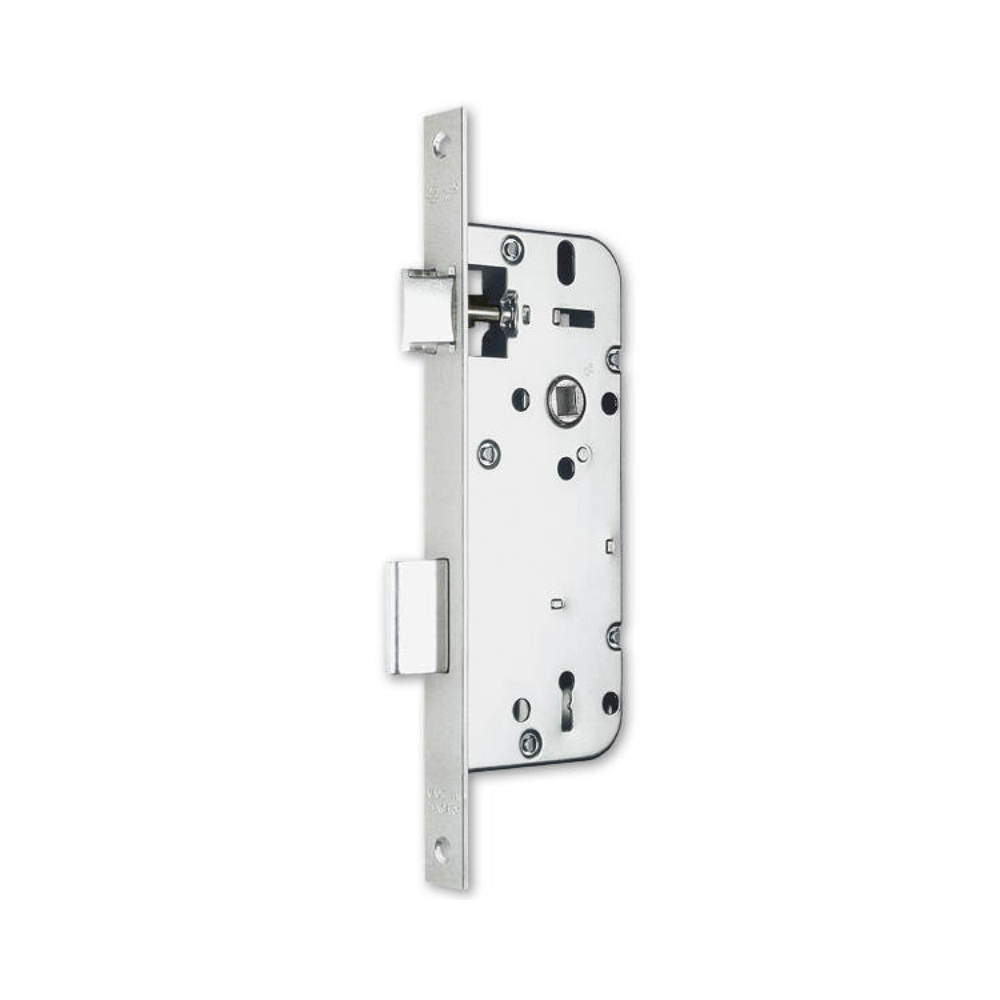

Elock – Euro Electrified Mortise Lock (Open When Power Off) – Elock-1200-Lz
See all products from elockAED 426.01 VAT included
Euro electrified mortise lock; open when power off; compatible with Euro profile cylinder and door furniture.
Product Code : SS156185
Brand: Elock
Approved by : [woo_pro_badges_extended]Brand: ELOCK
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
EURO ELECTRIFIED MORTISE LOCK (Open when power off). Typically used with Euro Profile Cylinder (brass), lever handle (SUS304), and stamped rose (54mm) in compatible door hardware sets.
Features
- Electrified mortise lock for access control integration
- Open when power off (fail-safe behavior)
- Operable via access control / push buttons / intercom integration (system dependent)
- Non-handed design for flexible installation
- Non-handed design for flexible installation
Specifications
- Model: EL-U7260TS
- Operating voltage: 12VDC (U70 series reference)
- Current: 600mA (U70 series reference)
- Backset: 70mm (U70 series reference)
- Distance: 92mm (U70 series reference)
- Latch bolt: SS304, projection 19mm (U70 series reference)
- Door thickness: 35–64mm standard applications (U70 series reference)
- Door clearance: 3–6.5mm (U70 series reference)
- Handing: non-handed
- Standard finish: satin / SSS (satin stainless steel)
