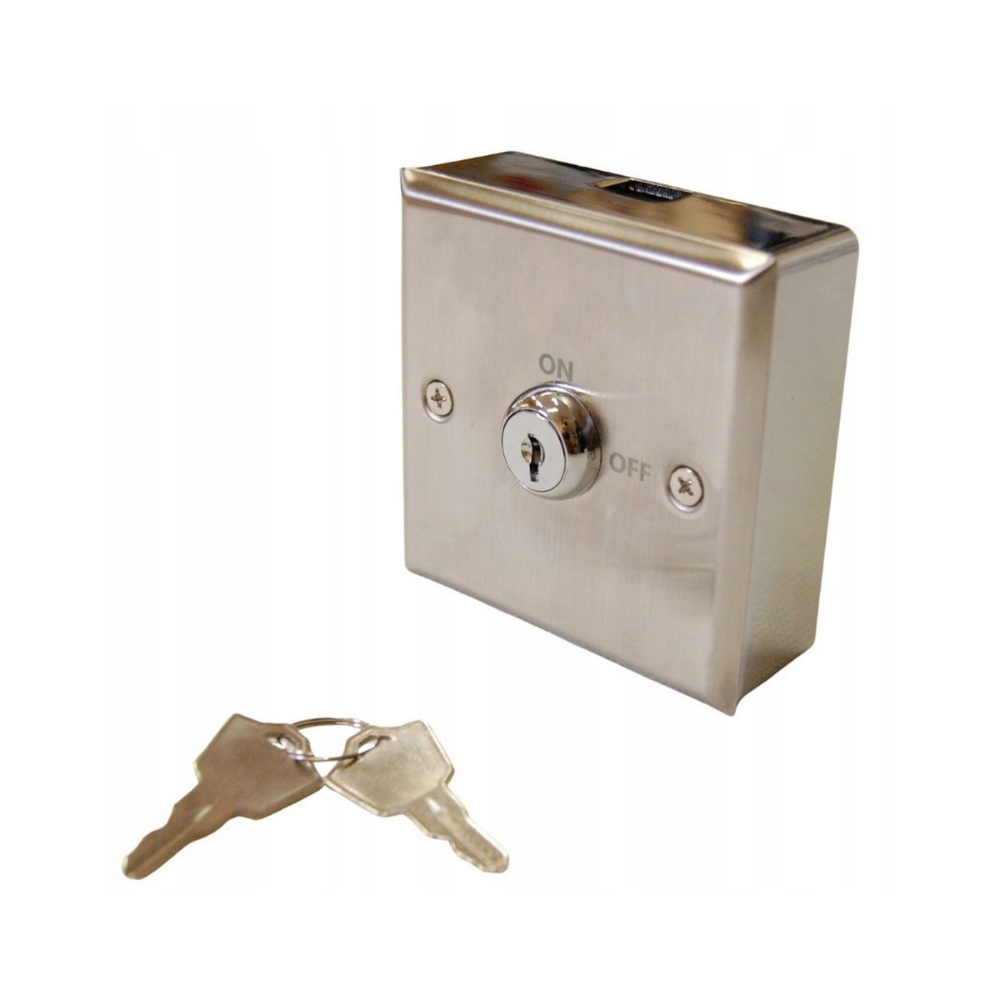

Elock – On/Off Key Switch Dpdt 86X86Mm Stainless Steel Faceplate (El-S86Kd) – El-S86Kd
See all products from elockAED 80.70 VAT included
on/off key switch, dpdt (2no/2nc/2com), 86×86mm, 1.8mm stainless steel faceplate.
Product Code : SS156203
Brand: Elock
Approved by : [woo_pro_badges_extended]Brand: ELOCK
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
el-s86kd is an on/off key switch with double pole double throw (dpdt) contacts. it includes 2no/2nc/2com terminals and an 86×86mm stainless steel faceplate with 1.8mm thickness, suitable for access control override/arming functions.
Features
- dpdt on/off key switch for access control override
- 2no/2nc/2com dry-contact terminals
- 86×86mm standard plate size
- 1.8mm stainless steel faceplate for durability
- 1.8mm stainless steel faceplate for durability
Specifications
- part: el-s86kd
- switch type: on/off key switch
- pole/throw: dpdt (double pole double throw)
- contacts: 2no / 2nc / 2com
- faceplate material: stainless steel
- faceplate thickness: 1.8mm
- faceplate size: 86×86mm
- mounting: flush / wall box
- output: dry contact (controller input compatible)
- application: access control override/arming circuits
