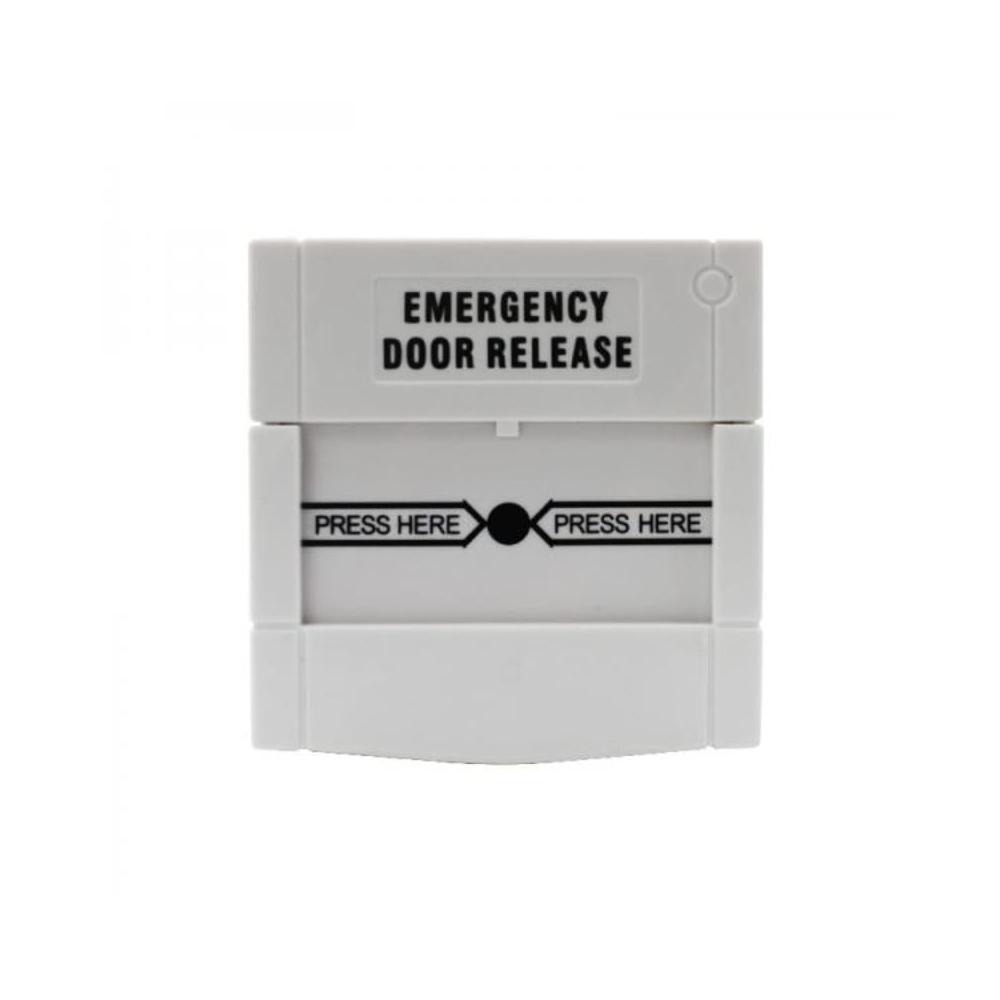

Elock – Resettable Emergency Door Release (White) – El-Rdr-W
See all products from elockAED 72.77 VAT included
dpdt resettable emergency door release for immediate unlock of fail-safe locks; white housing; surface/flush mount.
Product Code : SS156222
Brand: Elock
Approved by : [woo_pro_badges_extended]Brand: ELOCK
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Resettable emergency door release (white) for access-controlled doors. Pressing the front plate triggers emergency release to cut power to fail-safe locks. Resettable design reduces waste versus break-glass units; suitable for surface or flush mounting and offers DPDT contacts for flexible wiring.
Features
- resettable operating element (no glass replacement required)
- dpdt contacts for enhanced wiring flexibility (2no/2nc/2com)
- fast and easy installation with plug & play concept
- special tool operating test facility; simple maintenance
- special tool operating test facility; simple maintenance
Specifications
- contact configuration: dpdt (2no/2nc/2com)
- material: abs plastic housing
- mounting: surface or flush mount
- mechanical life: 500,000 cycles (typ.)
- operating temperature: -30°c to +70°c
- operating voltage (circuit): up to 30 vdc (typ.)
- current rating (circuit): up to 2a (typ.)
- reset method: key reset / special tool test & reset
- dimensions: 86 × 86 × 50 mm (typ.)
- application: emergency release for fail-safe door locks
