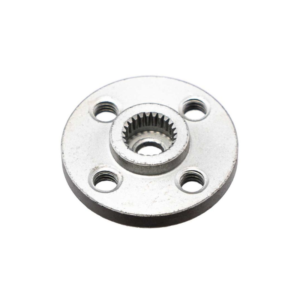

Metal Servo Horn - TPMP0039
AED 32.76 VAT included
High-Torque Metal Gear Digital Servo Motor for RC Applications, MG996R – TPMP0030
AED 30.71 VAT included
High-Torque Metal Gear Digital Servo Motor for RC Applications, MG996R – TPMP0030
100 in stock
Product Code : SS155401
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The MG996R is a high-torque digital servo motor designed for precision control in remote-controlled (RC) vehicles, including helicopters, cars, boats, and robots. Featuring metal gears for added durability and reliability, it provides exceptional performance for your RC projects, ensuring smooth and accurate movements.
Features
- High-Torque Performance: Provides up to 9.4 kg.cm (at 4.8V) torque for demanding RC applications.
- Metal Gears: Ensures durability and long-lasting reliability, even under heavy load conditions.
- Digital Control: Offers precise, stable, and responsive movement for better accuracy and control.
- Wide Compatibility: Ideal for use in RC helicopters, cars, boats, and robots, including Futaba and JR systems.
- High-Speed Operation: Delivers a fast response time of 0.20 sec/60° (at 4.8V) for quick adjustments.
Specifications
- Model: TPMP0030
- Part: MG996R
- Dead Band: 0.050 ms
- Control System: Pulse Width Control
- Working Frequence: 20ms period / 50hz (Digital Control)
- (RX) Required Pulse: 3.0 ~ 5 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8 ~ 6 V DC Volts
- Operating Temperature Range: 0 to + 55 Degree C
- Operating Speed (4.8v): 0.200 sec/60° degrees at no load
- Operating Speed (6v): 0.160 sec/60° degrees at no load
- Stall Torque (4.8v): 9.4kg/cm
- Stall Torque (6v): 11kg/cm
- Motor Type: Brushed Motor
- Potentiometer Drive: Direct Drive
- Bearing Type: Output Bearing
- Gear Type: Brass & Aluminum Gears
- Case Material: Plastic
