Hoyles TMR100 Securitime 12vdc time clock and timer
AED 1,324.05 VAT included
Next product
Hoyles CB103 Push model Cooperbolt with alarm
AED 1,250.55 VAT included
Hoyles S1720SI Press to Lock/Unlock button with LEDs
See all products from hoylesAED 795.90 VAT included

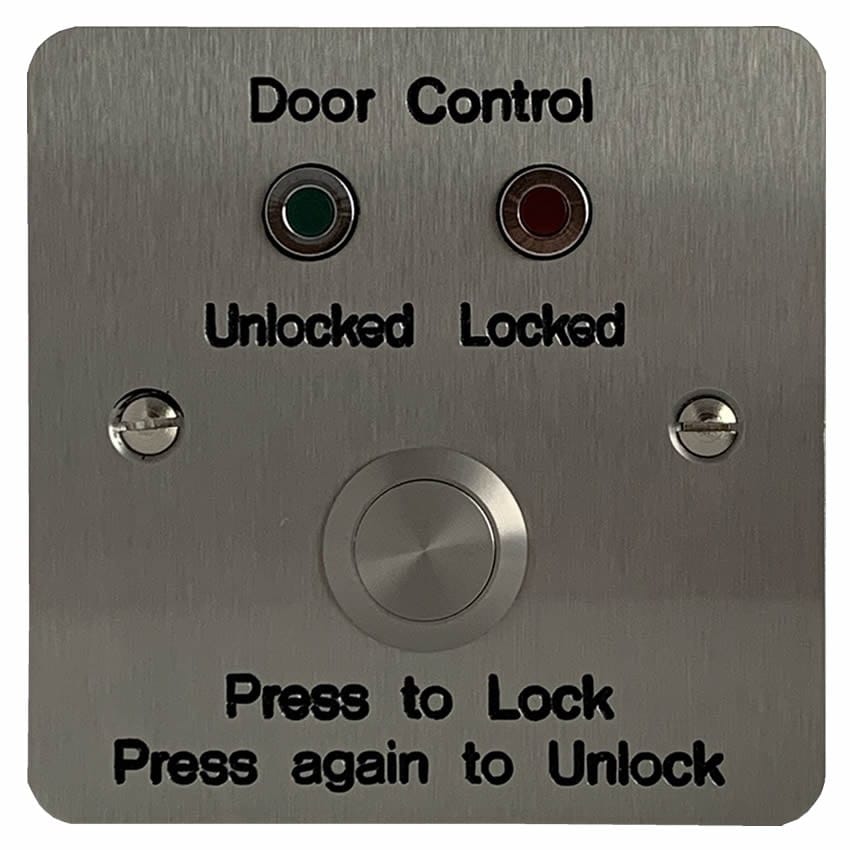

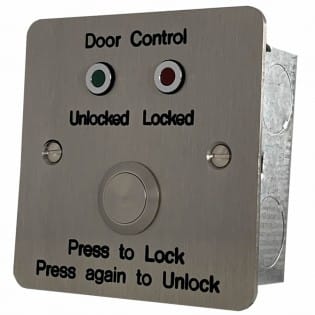

Hoyles S1720SI Press to Lock/Unlock button with LEDs. Flush fitting stainless steel vandal resistant push button with one red and one green flat LED in chrome bezels. Engraved with Press to lock/unlock.
This is a non-latching unit with single pole change over contacts. Separate terminals are provided for each LED. The LED current limit resistor is provided for 12 vdc operation.
Designed specifically for use with our range of Shared bathroom controllers IGSFB and IGSFC.
Product Code : SS11073
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S1720SI Press to Lock/Unlock button with LEDs. Flush fitting stainless steel vandal resistant push button with one red and one green flat LED in chrome bezels. Engraved with Press to lock/unlock.
This is a non-latching unit with single pole change over contacts. Separate terminals are provided for each LED. The LED current limit resistor is provided for 12 vdc operation.
Designed specifically for use with our range of Shared bathroom controllers IGSFB and IGSFC.Specification
Led Current – 20mA per LED @12vdc
Switch Contacts – SPCO 2A@ 30vdc
Sounder Current – N/A
Visual Indication – 1 x red LED 1 x green LED
Integral Sounder Level – N/A
Tamper – N/A
Material – 304 Grade Stainless Steel
Dimensions – 86mm x 86mm x 2mm – Facia
38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight – 0.28kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
