Hoyles TMR100 Securitime 12vdc time clock and timer

Hoyles TMR100 Securitime 12vdc time clock and timer. The Securitime is a versatile, secure programmable timer that switches a 12V 2A clean contact output relay. With a simple to use interface and a clear LCD display it is ideal for use with access control or any other applications that have time sensitive elements. The timer has a back up battery so even if there is a power cut it will retain the time, date and all the programmed settings. For added reliability the timer automatically calculates the day of the week from the date, adjusts for leap years and automatically updates for summer and winter time. Programable timer
7 programmable timers with 6 times per programme
12vdc powered
Volt free relay output
Highly accurate timing function
Override
Momentary or latched action
PIN Code protection of settings
Automatically adjusts for summer/winter time
Remote input for timer relay function<>

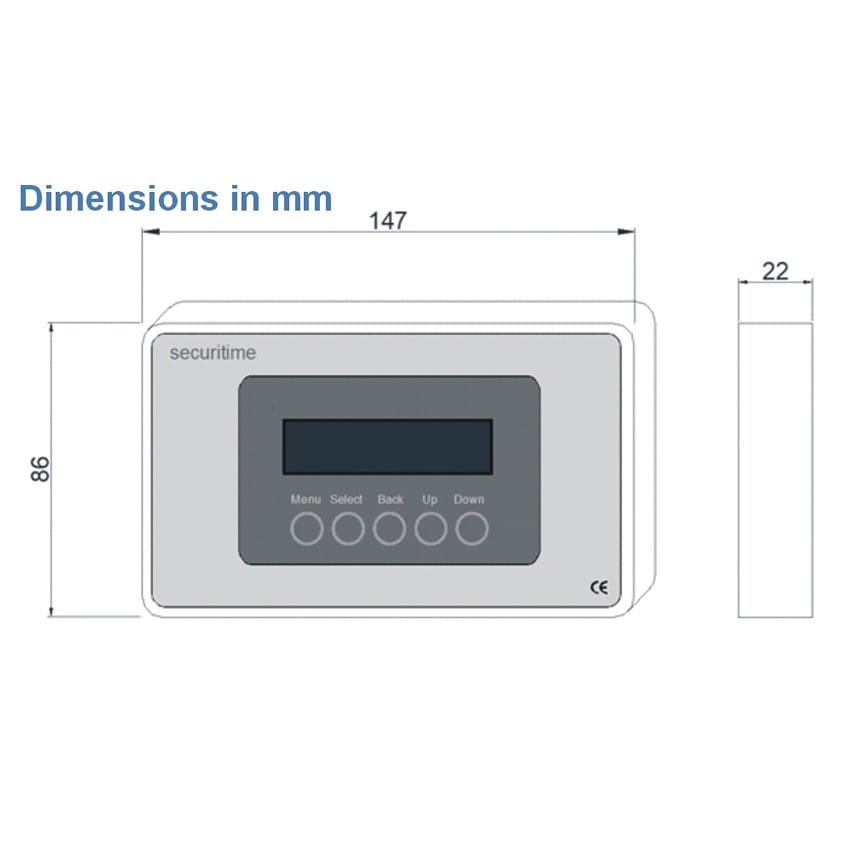

Dimensions – L147mm x W85mm x D22mmmOperation
The main operation of the Securitime timer allows the user to programme up to 7 different timers independently of each other so a different programme can be running each day of the week. The timers can be programmed to switch the output relay with up to 6 times per programme, each time can either latch the relay on/off or cause the relay to momentarily switch for up to 1 minute.
