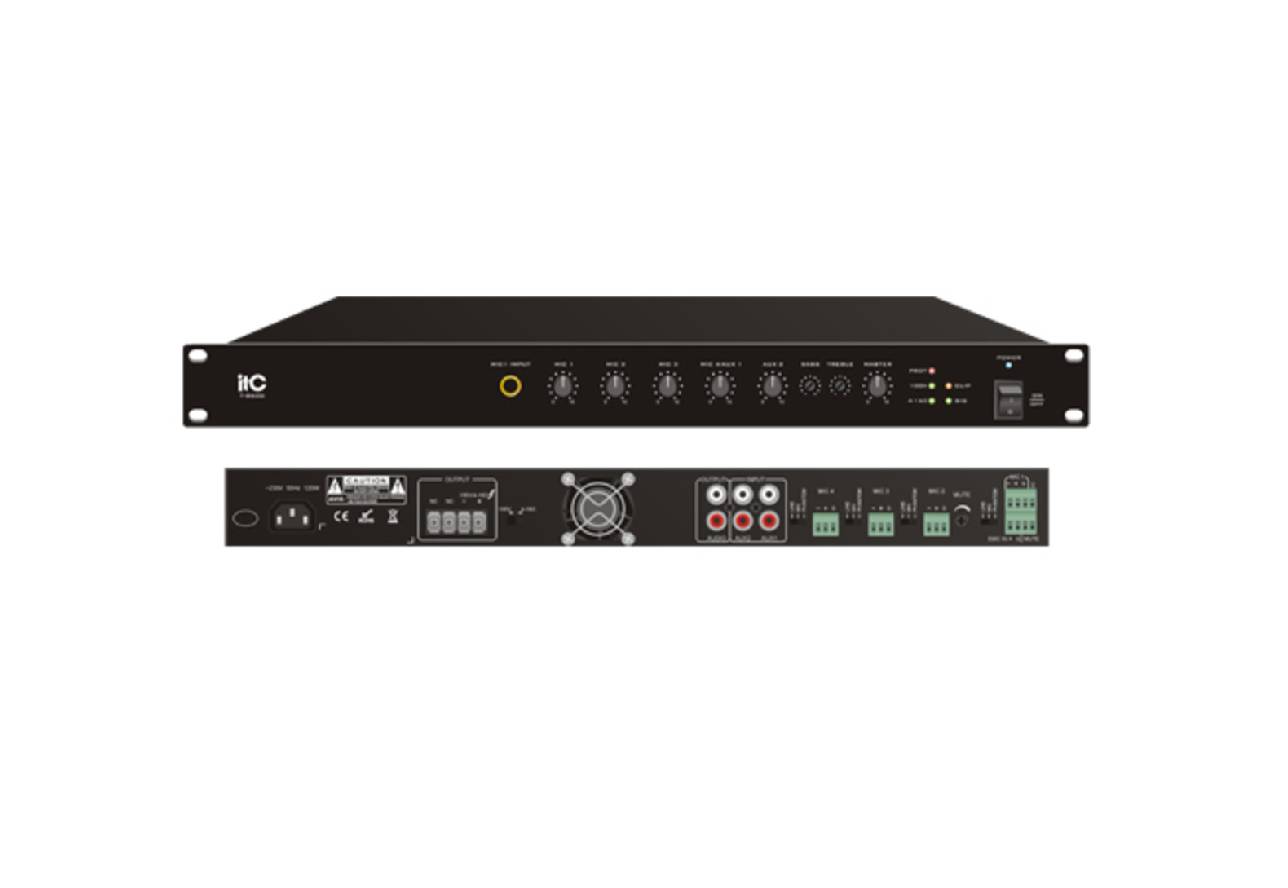

ITC – 240W Class D Mixer Amplifier with 4 Phoenix Mic Input, 2 Aux,100V & 4-16ohm – T-B240D

Name: ITC - 240W Class D Mixer Amplifier with 4 Phoenix Mic Input, 2 Aux,100V &amp; 4-16ohm - T-B240D
SKU: SS154152
Price: 1645.00 AED
Availability: InStock

See all products from itc

AED 1,727.25 VAT included

Compare

Product Code : SS154152 Brand: ITC Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Mixer digital amplifier. It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.

Features

Standard cabinet design (1U), exquisite SMT process design
1 EMC input, 2 AUX inputs, 4 MIC inputs
Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function
MIC1-4 balanced input with built-in 48V phantom power supply
The device is equipped with level indication, overload and protection indicators
The device has good self-protection such as short circuit, overload and overheating
Two output modes: constant voltage output 100V, constant resistance output 4-16?
The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier
Wide voltage power supply: 220V - 240V

Specifications

Brand: ITC
Model: T-B240D
Part: 5194788000000176851
Output Interface: 4-16?, 100V
Output Power: 240W
Input Sensitivity & Impedance: MIC1, 2, 3, 4 input:5mV/600? balanced European terminal, AUX1, 2 input:350mV/10K? unbalanced RCA connection terminal, EMC input:775mV/10K? balanced European terminal
Output Sensitivity & Source impedance: MIX OUT:1000mV/470? unbalanced RCA connection terminal
Tone: Bass:±10dB at 100Hz, Treble:±10dB at 10KHz
Frequency Response: 80Hz~16KHz(+1dB,-3dB)
SNR: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5%(in 1KHz, 1/3 rated power)
Phantom Power: 48V(±2V)
Mute Function: MIC 1 is prior to MIC 2-4,AUX 1-2 audio input; EMC is prior to all audio inputs
Channel Crosstalk Attenuation: ?50dB
Protection: Overheat protection,Overcurrent protection,short circuit protection
Power consumption: 80W
Dimension: 484×300×44mm
