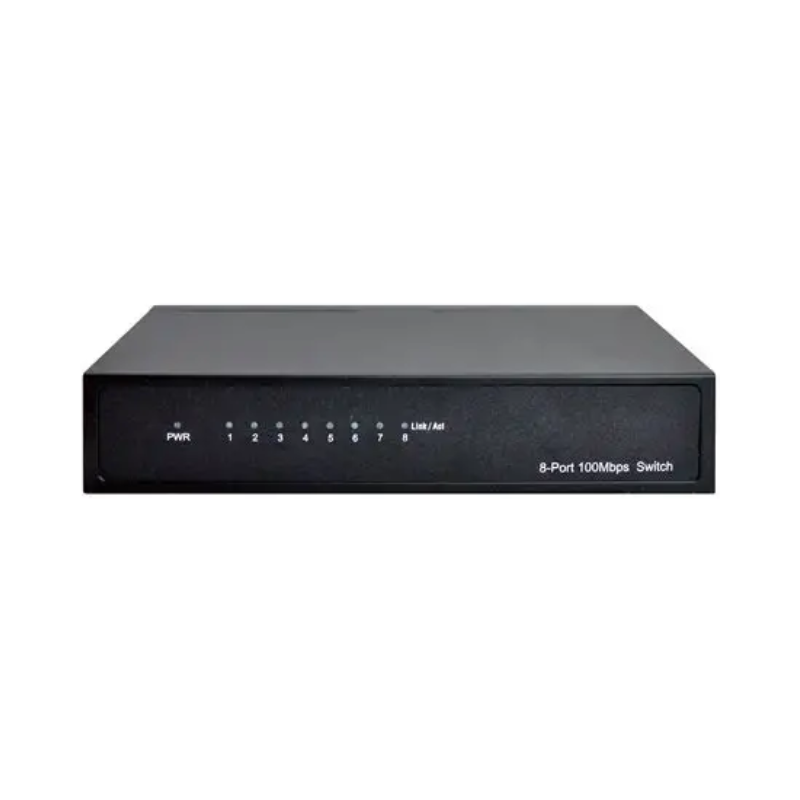

MORRELL – 8Port Desktop Switch + 1100 Mbps Uplink SWUNM9FE
AED 69.30 VAT included
810/100 Mbps RJ45 ports + 1100 Mbps uplink port in metal case, desktop or wall mount
100 in stock
Product Code : SS155875
Approved by : [woo_pro_badges_extended]
Tag: MORRELL - desktop 8port switch with uplink
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Unmanaged Ethernet switch featuring eight autonegotiating 10/100 Mbps ports and one shared 100 Mbps uplink (uses same controller as one data port). Comes in a metal desktop housing with LED indicators, autoMDI/MDIX, IEEE 802.3x flow control, and storeandforward switching.
Features
- Autonegotiation & autoMDI/MDIX
- IEEE 802.3x flow control & back-pressure for halfduplex
- Store-and-forward architecture
- MAC auto-learning/aging (~2 K address table)
- LED indicators for power, link/activity
- Plug-and-play, no configuration needed
- Desktop or wall-mountable metal design
- Supports IEEE 802.3, 802.3u, 802.3x
- Shared uplink behavior: uses same controller as adjacent port
- Reliable for SOHO or small office networks
Specifications
- Port Speeds: 810/100 Mbps + 1100 Mbps uplink
- Switching Capacity: 1.6 Gbps
- Packet Forward Rate: 10 Mbps 14,880 pps; 100 Mbps 148,800 pps
- MAC Table: ~2K entries
- Power: External adapter, 5 V 0.55 A DC
- Operating Temp: 040 xC; Storage Temp: 1070 xC; Humidity: 590% noncondensing
- Dimensions: 140 77 28 mm
- Cable Support: Cat 3/4/5 (10 Mbps); Cat 5/5e/6 (100 Mbps)
- Transfer Method: Storeandforward
- Certification: CE, RoHS (per MORRELL - standards)
