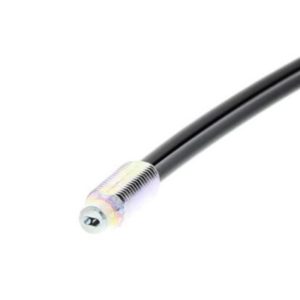

Omron - Industrial Automation Photoelectric Sensor, E32-DC200 - STSx0105
AED 358.31 VAT included
Next product

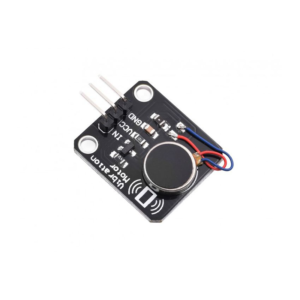

PWM Vibration Motor Module for Arduino and DIY Electronics Projects - STSx0141
AED 28.67 VAT included

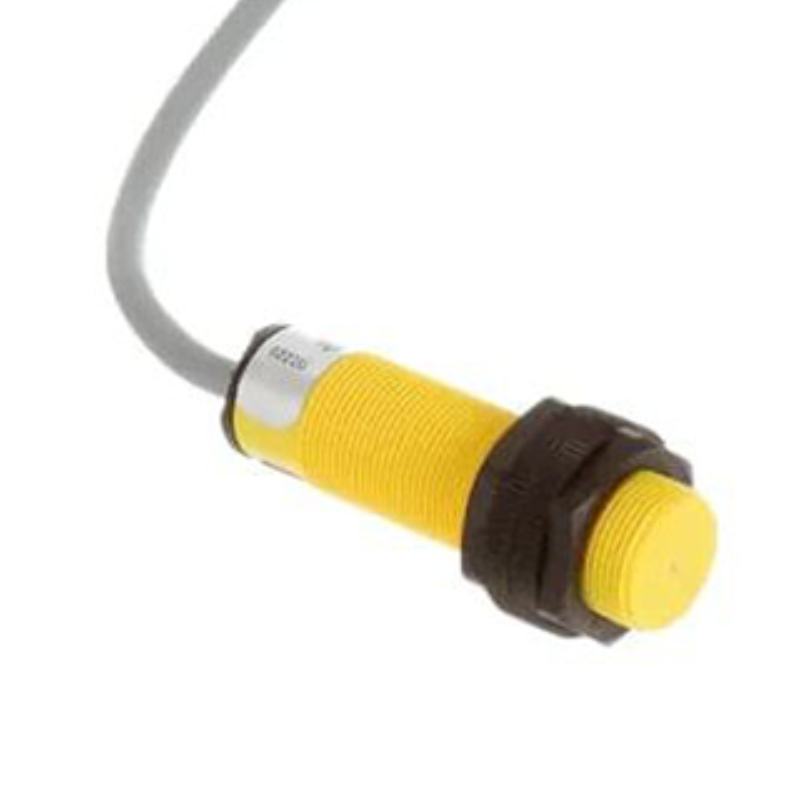

Ni8-M18-AZ3X Proximity Sensor – STSx0109
AED 128.99 VAT included
Ni8-M18-AZ3X Proximity Sensor – STSx0109
100 in stock
Product Code : SS154852
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The NI8-M18-AZ3X is a non-contact. 2-wire proximity sensor with a threaded barrel design (M18 x 1) and a chrome-plated brass housing. It is capable of operating with both AC (20-250 VAC) and DC (10-300 VDC) voltage. The sensor has a switching distance of 8mm and is designed for non-flush mounting.
Features
- The NI8-M18-AZ3X is a non-contact
- 2-wire proximity sensor with a threaded barrel design (M18 x 1) and a chrome-plated brass housing
- It is capable of operating with both AC (20 250 VAC) and DC (10 300 VDC) voltage
- The sensor has a switching distance of 8mm and is designed for non-flush mounting
Specifications
- Model: STSx0109
- Part: Ni8-M18-AZ3X
- Rated switching distance: 8mm
- Mounting conditions: Non-flush
- Secured operating distance: = (0.81 × Sn) mm
- Correction factors: St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
- Repeat accuracy: = 2% of full scale
- Temperature drift: = ±10%
- Hysteresis: 3 15%
