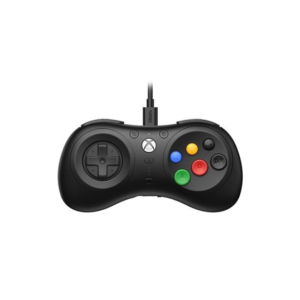

8Bitdo - M30 Wired Controller for Xbox Series with 6-Button Layout, Officially Licensed - CECP0160 AED 167.21

Next product

B E - SN74LS612N-DIP 4MB Memory Mapping Chip, High-Precision Integrated Circuit for Efficient Computing - SCIx0483 AED 40.95

Click to enlarge

Raspberry Pi – Pico Wifi with Headers – DEDB0565

Name: Raspberry Pi - Pico Wifi with Headers - DEDB0565
SKU: SS155701
Price: 102.38 AED
Availability: InStock

See all products from raspberry-pi

AED 102.38 VAT included

100 in stock

Compare

Product Code : SS155701 Brand: Raspberry Pi Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Raspberry Pi Pico W offers all the benefits of the Pico, plus built-in WiFi. The WH version comes with soldered headers for added convenience. Raspberry Pi Pico is a small, fast, and versatile board built using the RP2040 microcontroller chip designed by Raspberry Pi in the UK. From light displays to IoT devices and industrial processes, Raspberry Pi Pico can control countless home, hobby, and industrial operations. Programmable in C and MicroPython, Pico is adaptable to a wide range of applications and skill levels. Getting started is simple just drag and drop a file! Experienced users can utilize SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

Features

Raspberry Pi Pico W offers all the benefits of the Pico, plus built-in WiFi
The WH version comes with soldered headers for added convenience
Raspberry Pi Pico is a small, fast, and versatile board built using the RP2040 microcontroller chip designed by Raspberry Pi in the UK
From light displays to IoT devices and industrial processes, Raspberry Pi Pico can control countless home, hobby, and industrial operations
Programmable in C and MicroPython, Pico is adaptable to a wide range of applications and skill levels

Specifications

Brand: Raspberry Pi
Model: DEDB0565
Microcontroller: RP2040 microcontroller chip by Raspberry Pi (UK)
Processor: Dual-core Arm Cortex-M0+ processor, flexible clock up to 133 MHz
Memory: 264kB on-chip SRAM
Storage: 2MB on-board QSPI flash
WiFi: 2.4GHz 802.11n wireless LAN (Pico W and Pico WH only)
GPIO Pins: 26 multifunction GPIO pins, including 3 analogue inputs
Communication: 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
USB: 1 × USB 1.1 controller and PHY, with host and device support
Programmable I/O: 8 × PIO state machines for custom peripheral support
Input Power: Supported 1.85.5V DC
Dimensions: 21 mm × 51 mm form factor
