Description

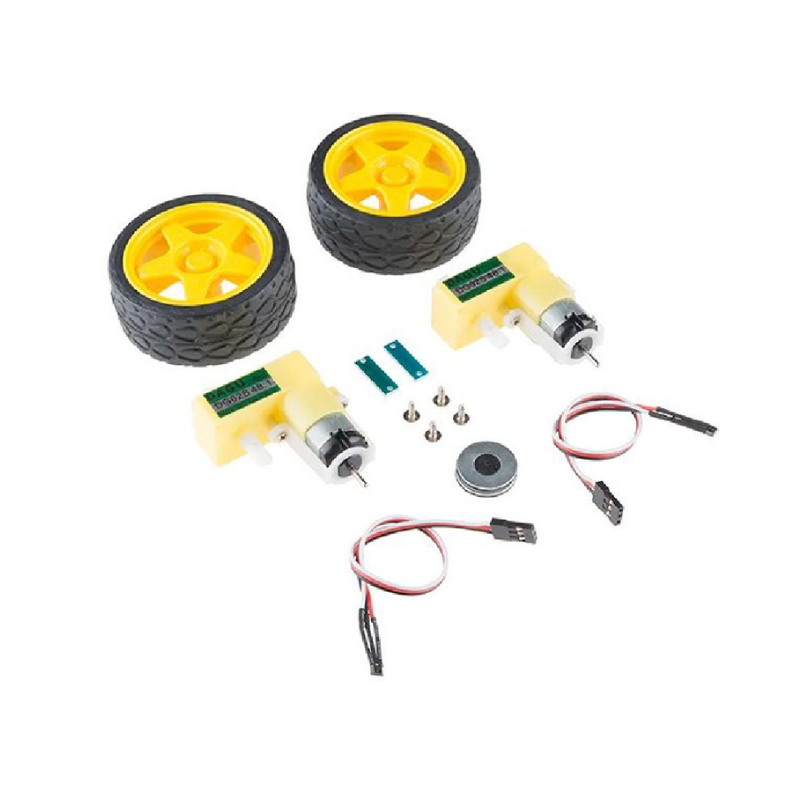

Includes three pairs of items: wheels, gearmotors, and wheel encoders. The kit includes: 2x DG02S Mini DC, Gear Motor: 2x Wheel – 65mm, 1x Wheel Encoder Kit (Set of 2)
Features
- Perfect for beginners or as extra parts for your next project
- Offset gear motors require a voltage of 3-6V, no load current of 200mA, stall current of 3A@6V (1.5A@3V)
- Gearbox ratio of 48:1, wheel speed of 65RPM at 3V unloaded
- Wheel encoders require a supply voltage of 3-24V, supply current of 4mA
- Consists of two neodymium 8-pole magnets with rubber hubs and two hall-effect sensors
Specifications
- Model: RARK0006
- Voltage: 3V 6V
- No Load Current: 200mA
- Stall Current: 3A @ 6V (1.5A @ 3V)
- Gearbox Ratio: 48:1
- Wheel Speed: 65rpm @ 3V unloaded (Recommended)
- -Wheel Encoder:
- Voltage: 3V 24V with reverse polarity protection
- Encoder Type: 8-pole neodymium magnet and hall-effect sensor
- Encoder Output: Open drain with short circuit protection
