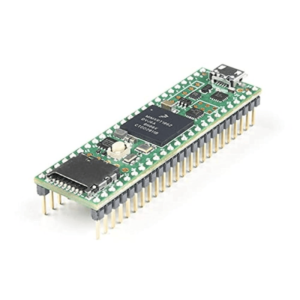

Teensy - 4.1 with Ethernet and Pins - DEDB0153
AED 245.70 VAT included
Next product

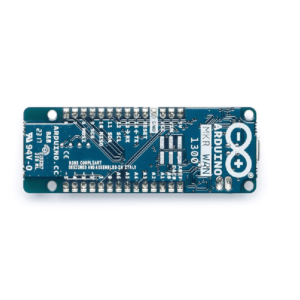

Arduino - MKR WAN 1300 without Antenna, ABX00017 - DEDB0161
AED 286.65 VAT included
Teensy – USB Board Version 4.0 with Pins – DEDB0154
AED 191.10 VAT included

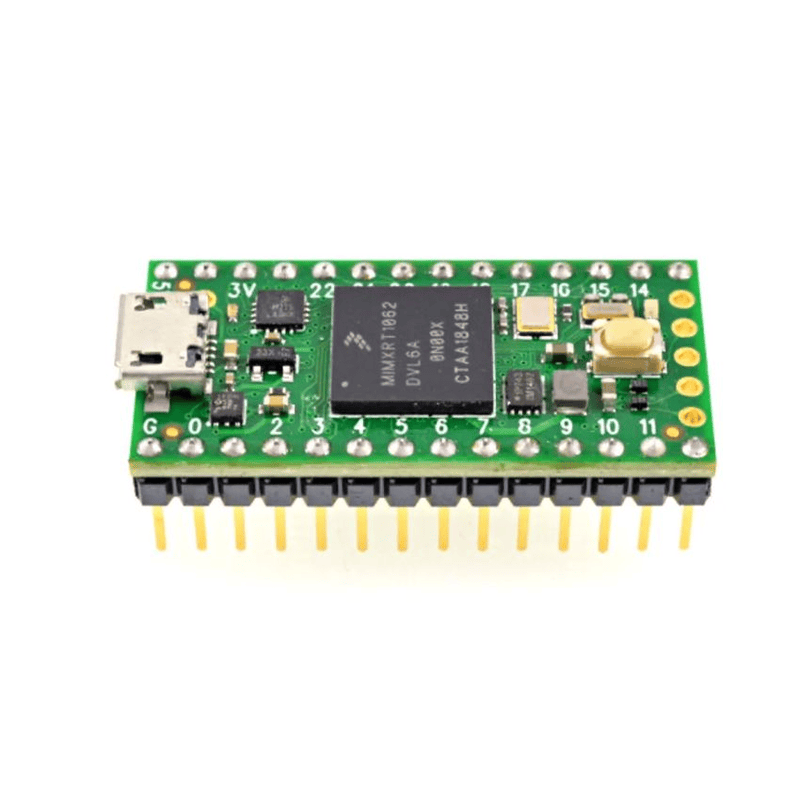

Teensy – USB Board Version 4.0 with Pins – DEDB0154
100 in stock
Product Code : SS154726
Brand: Teensy
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Teensy 4.0 is the newest offering from the Teensy line, bringing the most powerful microcontroller and advanced peripherals in a compact 1.4 by 0.7-inch package. It boasts an ARM Cortex-M7 processor running at 600MHz and is equipped with the NXP iMXRT1062 chip, the fastest microcontroller currently available. Despite its power, the Teensy 4.0 maintains the same form factor as the Teensy 3.2 and is compatible with most of its pin functions.
Features
- ARM Cortex-M7 at 600 MHz
- Float point math unit, 64 & 32 bits
- 1984K Flash, 1024K RAM (512K tightly coupled), 1K EEPROM (emulated)
- USB device 480 Mbit/sec & USB host 480 Mbit/sec
- 40 digital input/output pins, 31 PWM output pins
- 14 analog input pins
- 7 serial, 3 SPI, 3 I2C ports
Specifications
- Brand: Teensy
- Model: DEDB0154
- USB Host: 2 SMT Pads
- SDIO (4 bit data): 8 SMT Pads
- PWM Pins: 31
- Analog Inputs: 14
- Serial Ports: 7
- Flash Memory: 2 Mbyte
- QSPI Memory: Program Memory
- Breadboard I/O: 24
- Bottom SMT Pads: 16
- SD Card Signals: 0
- Total I/O Pins: 40
