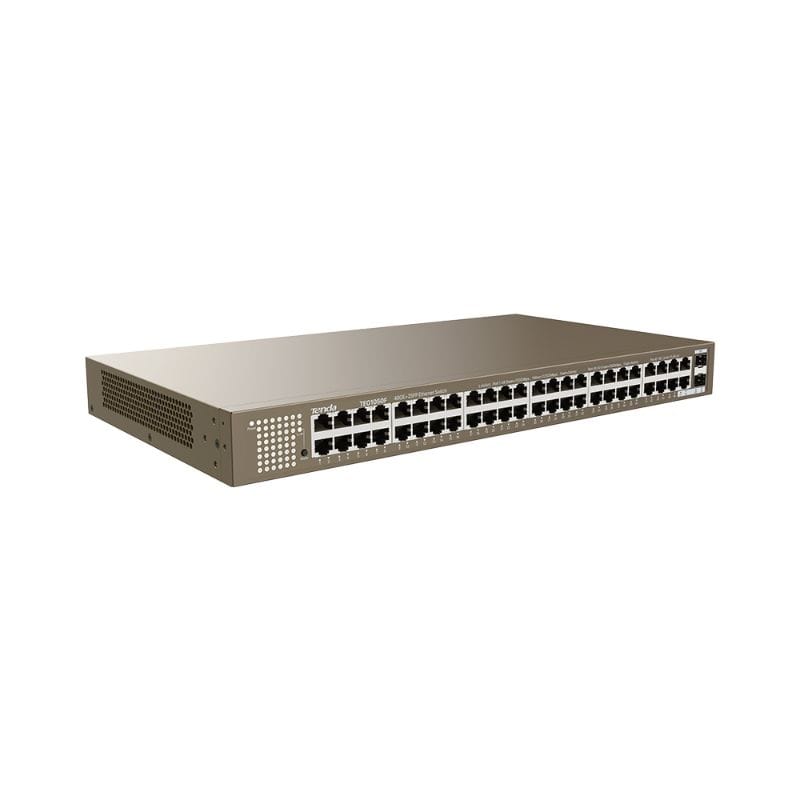

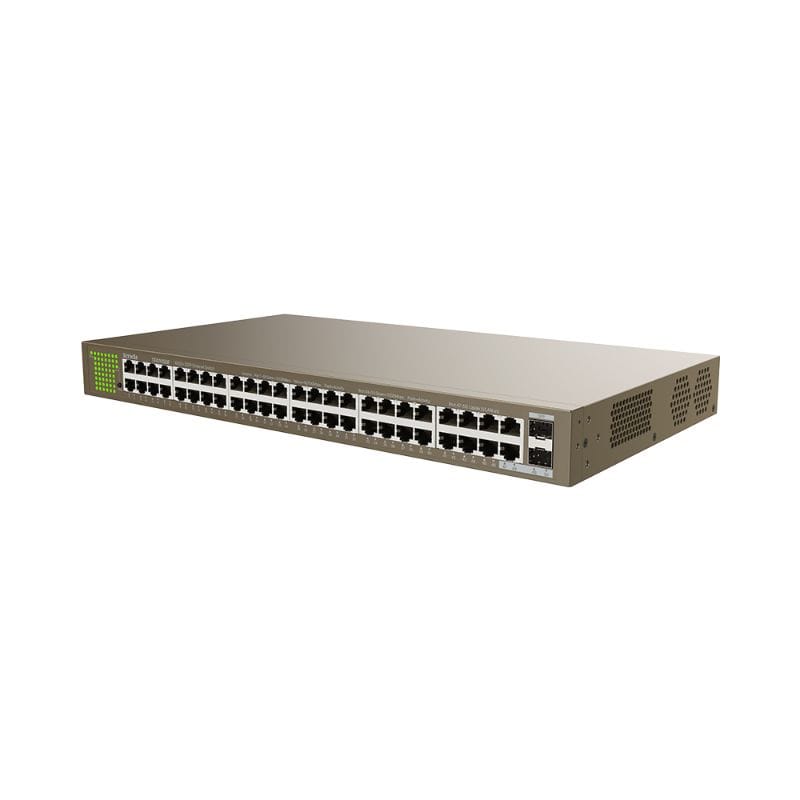

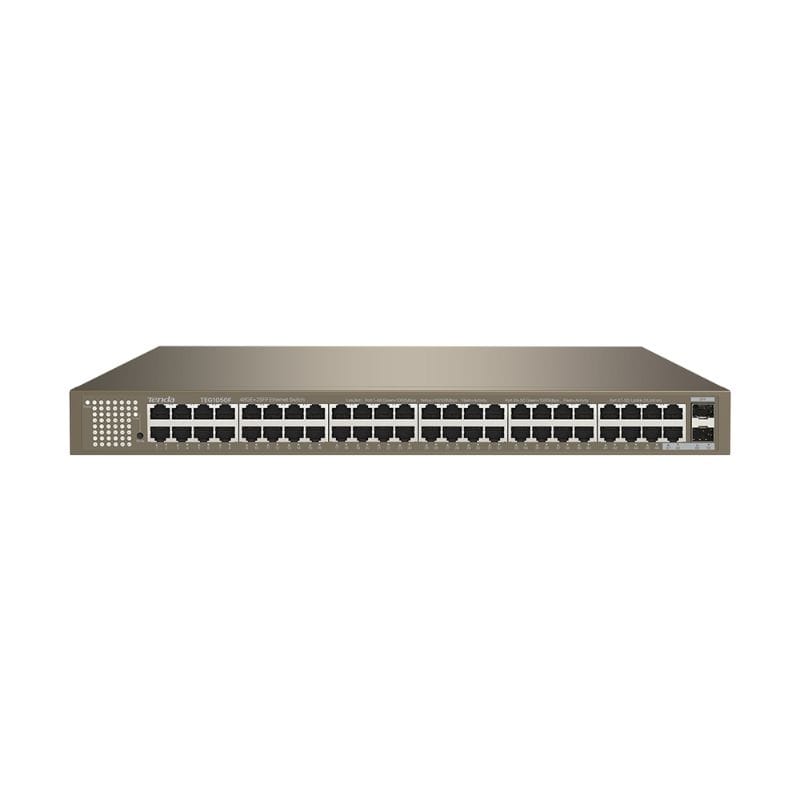

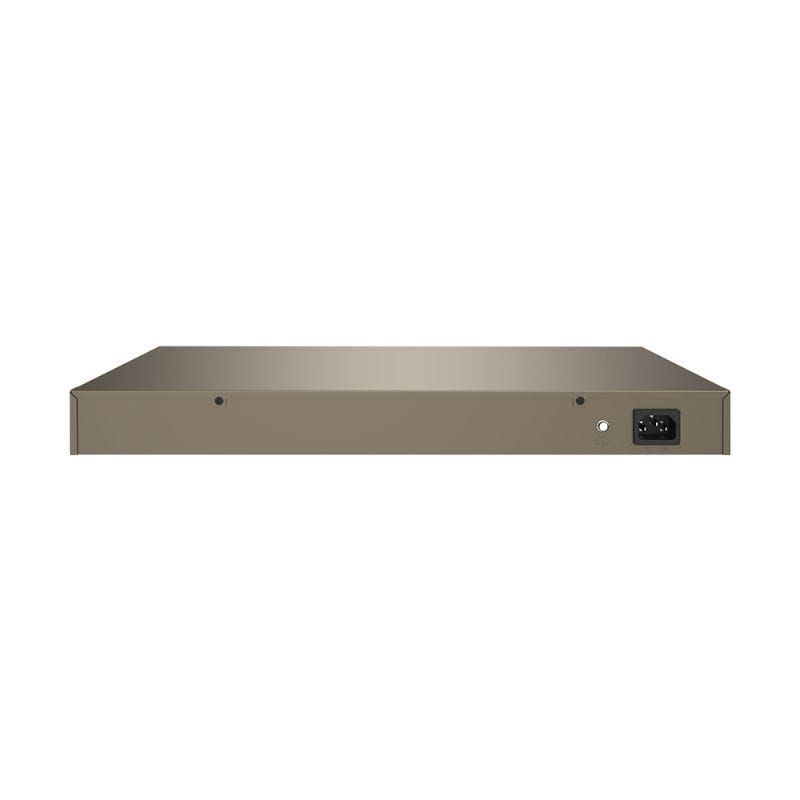

Tenda – 48-port Gigabit Rachmount Switch – TEG1050F

See all products from tenda

VAT included

Build Enquiry List

Compare

Product Code : SS149445 Brand: Tenda Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs’ networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with Tenda’s SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

Features

The switch provides 48 10/100/1000 Mbps auto-negotiation RJ45 ports, and 2 indepen-dent 1000 Mbps SFP ports
The full-duplex transmission rate of the switch can reach 2000 Mbps, and all ports feature wire speed forwarding, ensuring high performance for process-ing applications that require high bandwidth
With 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos
This switch provides 6 kV lightning protection for both Ethernet ports and the power supply, and supports over-temperature, over-voltage and surge current protection
Under the VLAN mode, ports 1 to 46 cannot communicate with each other, but can communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network security
The switch features a 1U 19-inch standard rack-mount shell design and can be easily installed on a 19-inch rack using the included L-shaped brackets
With plug & play function, it needs no professional settings and can be used for networking directly, greatly reducing the maintenance cost

Specifications

Brand: Tenda
Model: TEG1050F
Interfaces: 48*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX), 2*1000 Base-X SFP ports (Independent)
Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Switch capacity: 100Gbps
