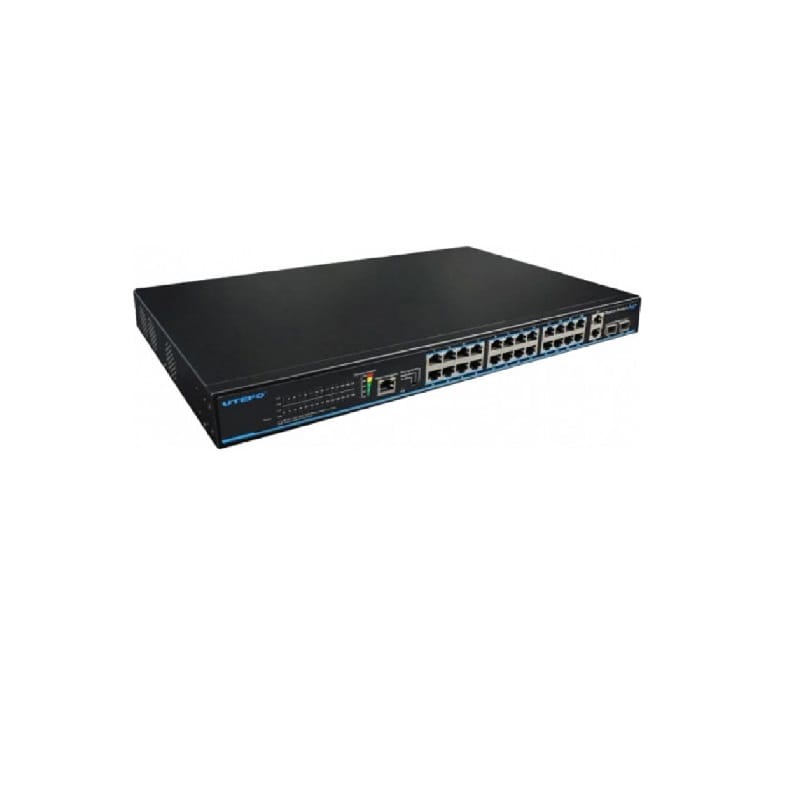

UTEPO UTP1-SW2402TS-POE 24 Ports PoE Fast Unmanaged Ethernet Switch

UTEPO UTP1-SW2402TS-POE 24 Ports PoE Fast Unmanaged Ethernet Switch

Provide 24*10/100Base-TX downlink PoE Ethernet
ports, 2*10/100/1000Base-T uplink Ethernet ports
and 1*1000Base-X/SFP;
l Downlink Ethernet ports support PoE+, each port
supports max. 30W output;
l Support power consumption indication(LED
indicates power output status); Accord with
IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3
af/at standard;
l 4K MAC address,2.75Mb cache;
l Quick installation, easy operation, convenient

Downstream Ports 24* 10/100Base-TX( PoE)
Uplink Ports 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo)
Network Standard IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3X
Switching Capacity 8.8Gbps Packet Forwarding Rate 6.55Mpps Switch Method Store and Forward
Memory Buffer 2.75M
MAC Table 4K
PoE Standard 802.3af/at(PSE)
PoE Power Method End-span
PoE Line Pair 1/2(+)，3/6(-)
PoE Power Output 54V DC , 30 watts max PoE Budge 270 watts max Surge Immunity 6KV Execute：IEC61000-4-5
ESD Immunity
6KV Contact discharge
8KV Air discharge
Execute：IEC61000-4-2
Input Voltage 100~240V AC；50/60Hz Power Consumption ＜300W(Including PoE)
Operating Temperature -10℃~50℃
Storage Temperature -40℃~85℃
Operating Humidity 5%-95%
Dimension（L×W×H） 442mm×285mm×44.5mm Weight 4.03kg
Certification CE、FCC、ROHS
