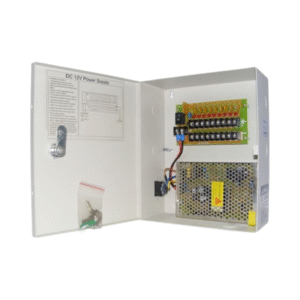

TRAICE - 12 V 10 A 9Channel Power Adapter TRO12DB9CH10A
AED 69.30 VAT included
Next product
TRAICE - 12 V 30 A 18Channel Power Adapter TRO12DB18CH30A
AED 119.70 VAT included
TRAICE – 12 V 20 A 18Channel Power Adapter TRO12DB18CH20A
AED 100.80 VAT included

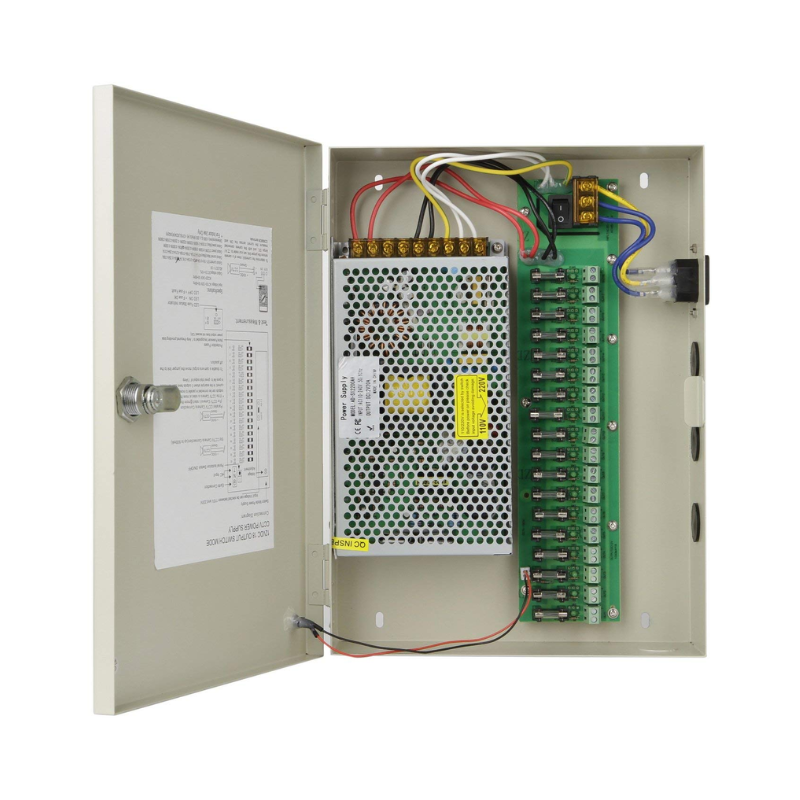

Metal-box 18-output 12 V DC power supply (360 W) with individual PTC auto-reset protection and LED indicators
100 in stock
Product Code : SS155849
Approved by : [woo_pro_badges_extended]
Tag: TRAICE - 12 V 20 A 18CH power supply
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Rugged 12 V DC metal-enclosed power supply delivering 20 A (240 W total) across 18 individual PTC-protected outputs. Each channel is monitored by LED status indicators and supports surge, short-circuit, and thermal protection. Ideal for CCTV, access control, and LED systems.
Features
- Individual PTC auto-reset fuse per channel
- LED status indicator per output
- Surge protection
- Short-circuit and thermal protection
- EMI-filtered, regulated output
- Metal housing for durability and heat dissipation
- AC input switch (110240 VAC)
- Compact wall- or rack-mountable form factor
- Ideal for CCTV, PTZ cameras, access control panels, and LED systems
- CE / FCC certified components
Specifications
- Input Voltage: 110240 VAC, 50/60 Hz
- Output Voltage: 12 V q5%, Max Total Current: 20 A (~1.11 A per channel)
- Channels: 18 PTC-fused
- Protection: over-current, surge, short-circuit, over-temperature
- Efficiency: r85%
- Operating Temp: 20 xC to +65 xC; Humidity: 1085% RH
- Dimensions: approx. 25926776 mm (~10.2"10.5"3")
- Weight: ~2.5 kg (5.5 lb)
- AC power on/off switch
- Certifications: CE, FCC
