Aiphone – IX-DVF-2RA IP Addressable Emergency Video Stations for IX Series – Thailand

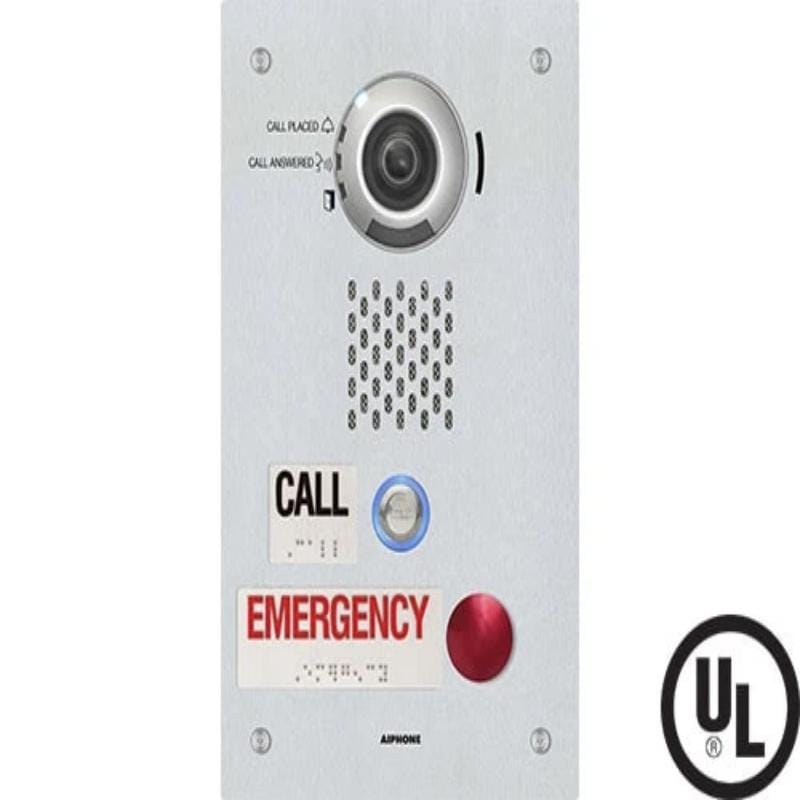

The IX-DVF-2RA is a flush mount, IP addressable video call stations. The IX-DVF-2RA has an emergency button and standard call button with a call and emergency placard with raised lettering and Braille signage. The emergency button can be programmed to call up to 20 different stations. The call button can call up to 20 different stations. Both stations are weather resistant (IP65) and connect to a network using Cat-5e/6 cable. The stations are SIP compliant and equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The stations have a 600Ω output that can be used for paging or communication. There are 2 contact outputs that can be programmed to trigger during door release, when the 600Ω output is used, or based on the status of the station. Sound files can be uploaded for custom messages to be played during certain functions. The stations have audible and visual indications for calling, communication, and door release.
