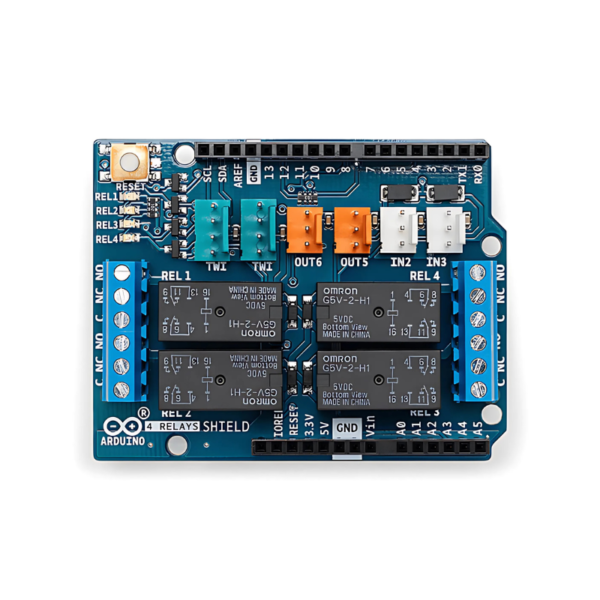

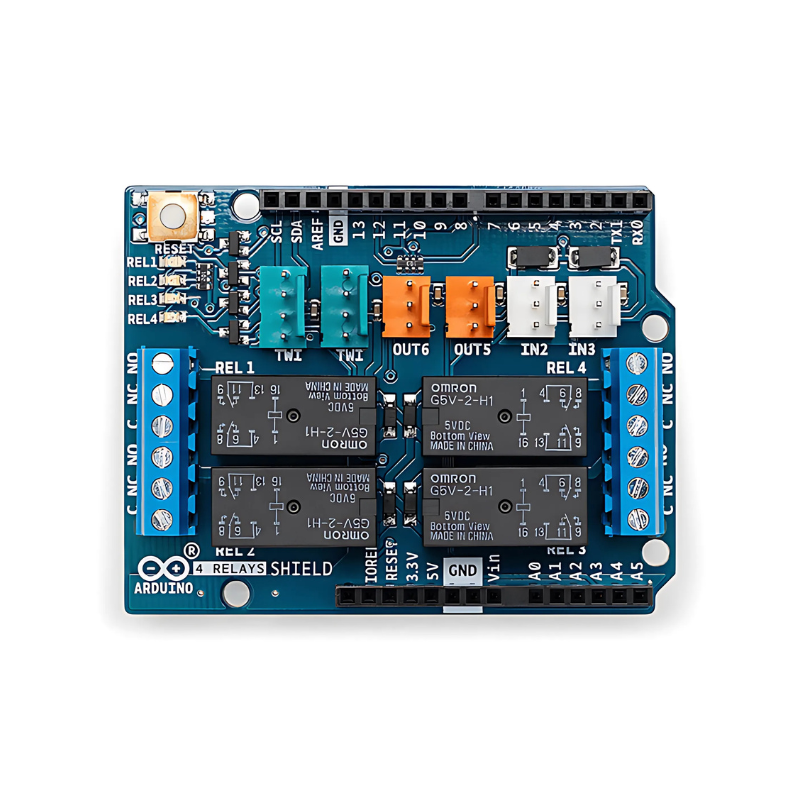

Arduino – 4 Relays Shield, A000110 – DEDB0012

See all products from arduino

AED 163.80 VAT included

Arduino – 4 Relays Shield, A000110 – DEDB0012

100 in stock

Product Code : SS154688 Brand: Arduino Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Allows Arduino to manage high-power loads beyond standard IO capacity. Each relay with changeover (NO/NC) contacts for flexible load management. Shows status for each relay.

Features

High-Power Control: Allows Arduino to manage high-power loads beyond standard IO capacity
4-Relay Configuration: Each relay with changeover (NO/NC) contacts for flexible load management
LED Indicators: Shows status for each relay

Specifications

Brand: Arduino
Model: DEDB0012
Part: A000110
Thinker Kit Interface: 2x TWI, 2x OUT, 2x IN
Interface with Arduino Board: DIO
Relays: 4 (60W each)
Operating Voltage: 5V
Current Requirements: 140 mA (35 mA per relay when all are active)
