AEL0224 IPIXA ZL Bracket Suitable to be used with AEL0221 & AEL0222 Magnetic Locks
AED 94.50 VAT included

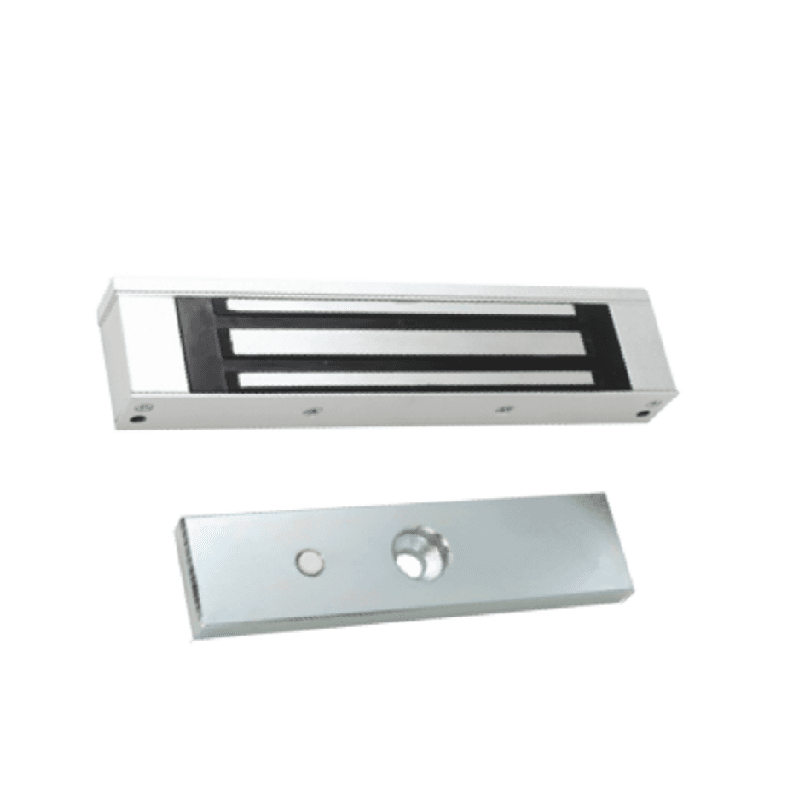

AEL0221 IPIXA Single Magnetic Lock of holding Force 600 lbs Plus with SMD LED display and In-Built Door Status Monitoring
AED 189.00 VAT included
Product Code : SS13884
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
AEL0221 IPIXA Single Magnetic Lock of holding Force 600 lbs Plus with SMD LED display and In-Built Door Status Monitoring . Forced Open/Held Open/Access Granted-Door Used, etc. Suitable for Single Leaf Wooden & Metal Doors. Tested to 500,000 Cycles. 3 Years Warranty*. CE Certified.
Features
- Feature : Fail-safe: Power to lock
- Advantage : Low power consumption, high efficiency
- Application : Metal doors, wooden doors, ?reproof doors, glass door
- Weight: Approx. : 2kg
- Feedback : Door Status Output, NO/NC/COM
- Material : Finishes for shell : Anodized aluminum
- Current Draw : 12V / 380mA
- Finishes for Armature : Zinc
- Finishes for magnet : Zinc
Specifications
- Armature Size : 180 L X 38 H X 11 D (mm)
- Lock Size : 250 L X 27 H X 48 D (mm)
- Holding Force : 280KG (600 LBS)
- Voltage : 12V DC
