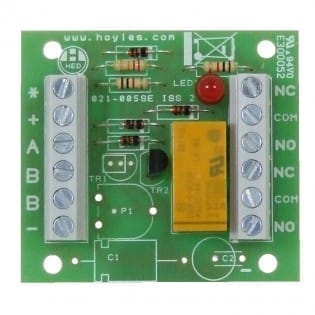

Hoyles Transistorized double pole relay module NPN version
See all products from hoylesAED 187.95 VAT included
Hoyles Transistorised double pole relay module NPN version. General purpose transistor driven interface relay. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.
Self adhesive backed for easy mounting. Four mounting holes provided for more permanent fixing. Screw terminals for easy connection.
Product Code : SS11321
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles Transistorised double pole relay module NPN version. General purpose transistor driven interface relay. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.
Self adhesive backed for easy mounting. Four mounting holes provided for more permanent fixing. Screw terminals for easy connection.S312N and S312N/24
S312N Requires 12vdc supply at 30mA
S312N/24 Requires 24vdc supply at 30mA
Contacts Rated at 2amp
AC Versions available
S382N and S382N/24
S382N Requires 12vac supply at 30mA
S382N/24 Requires 24vac supply at 30mA
Contacts Rated at 2amp
DC Versions availableDimensions – L57mm x W47mm x D14mm
