Hoyles Transistorised double pole timer relay module
See all products from hoylesAED 203.70 VAT included

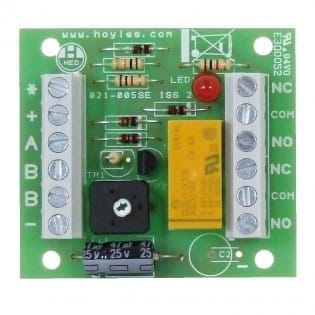

Hoyles Transistorised double pole timer relay module. Transistor driven timer relay module. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage DPCO contacts.
The action of the device can be delayed by between about 3 and 60 seconds. This can be adjusted with the on board potentiometer. This can be a useful feature where it is necessary to delay one action slightly to allow another.
Self adhesive backed for easy mounting. Four mounting holes provided for more permanent fixing. Screw terminals for easy connection.
Product Code : SS11324
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles Transistorised double pole timer relay module. Transistor driven timer relay module. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage DPCO contacts.
The action of the device can be delayed by between about 3 and 60 seconds. This can be adjusted with the on board potentiometer. This can be a useful feature where it is necessary to delay one action slightly to allow another.
Self adhesive backed for easy mounting. Four mounting holes provided for more permanent fixing. Screw terminals for easy connection.S312T and S312T/24
S312T Requires 12vdc supply at 30mA
S312T/24 Requires 24vdc supply at 35mA
Contacts Rated at 2amp
AC Versions available
S382T and S382T/24
S382T Requires 12vac supply at 30mA
S382T/24 Requires 24vac supply at 35mA
Contacts Rated at 2amp
DC Versions available on requestDimensions – L57mm x W47mm x D14mm
