Hoyles Boxed Mains Rated Relay Module
Click to enlarge

Hoyles Boxed Mains Rated Relay Module

hoyles See all products from hoyles

AED 366.45

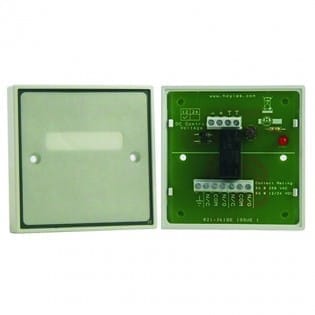

Hoyles Boxed Mains Rated Relay Module. A double pole change over (DPCO) relay with 5A 250vac mains rated contacts. Supplied in a plastic single gang sized enclosure complete with tamper switch. Ideal for switching a mains lighting circuit from an intruder alarm.

Build Enquiry List
Compare
Product Code : SS11345 Seller: Security Supplies Brand: Hoyles Approved by : [woo_pro_badges_extended]

  • free delivery

    Above AED1000 in UAE

  • WARRANTY

    For 365 days

  • always authentic

    Only Reputed Brands

  • EASY PAYMENT

    Multiple payment options

Description

Hoyles Boxed Mains Rated Relay Module. A double pole change over (DPCO) relay with 5A 250vac mains rated contacts. Supplied in a plastic single gang sized enclosure complete with tamper switch. Ideal for switching a mains lighting circuit from an intruder alarm.S361-MB and S361-MB/24
S361-MB Requires 12vdc supply at 60mA
S361-MB/24 Requires 24vdc supply at 60mA
Contacts mains rated 250vac at 5A
Screw terminals for easy connection
Volt free DPCO contacts
Diode protection for polarity and coil back emfUnits are provided housed in a single gang white ABS enclosure.
Relay Dimensions – L80mm x W74mm x D16mm
Box Dimensions – L87mm x W87mm x D36mm

Features

Specifications
