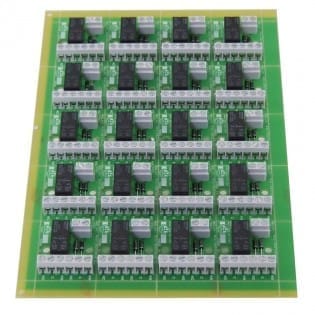

Hoyles Panel of 20 Double Pole Relay Modules

Hoyles Transistorised double pole relay module NPN version. General purpose transistor driven interface relay. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts. Self adhesive backed for easy mounting. Four mounting holes provided for more permanent fixing. Screw terminals for easy connection.

Hoyles VQ16297 Boxed 10A Mains Rated Relay IP65 rated enclosure. Used for switching larger loads. Ideal to provide higher rated mains contacts from our S361-MB 12vdc operated mains relay.

Hoyles Mains rated relay kit. This kit is designed for switching a 240vac mains load of up to 5A operated by a 12vdc or 24vdc input from an intruder for fire alarm system depending on version. The relay coil is rated at 35mA. Two white plastic single gang enclosures are provided for segregation of the alarm system and the mains connections. The first enclosure is tampered and contains a relay with single pole change over contacts rated 5A at 240vac or 12/24vdc. The relay coil requires 12vdc or 24vdc, depending on version, to operate. An LED is also provided which illuminates when the relay is energised. The tamper switch is normally closed and opens when the face plate is removed from the wall. The second enclosure is purely a junction box which provides a replication of the SPCO contacts. An earth terminal is also provided for convenient termination of an in coming mains cable. As the enclosures are all plastic, no earth connection is required. A loop of cable is provided within the kit to connect the two enclosures together.

Hoyles S312N-8 8 x transistorised double pole relay modules on a single PCB. This single PCB contains 8 of our transister driven DPCO Interface relay modules. All modules operate independently but have power pre connected on the PCB for convenience. The modules accept a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.
