Hoyles Boxed Dual Double Pole Relay Module
See all products from hoylesAED 351.75 VAT included

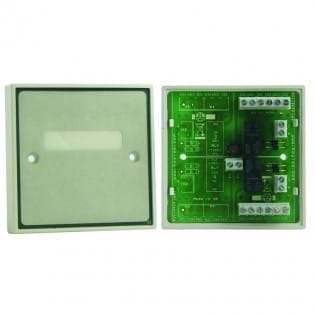

Hoyles Boxed Dual Double Pole Relay Module. Two completely separate double pole change over relays on a single PCB mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch.
Product Code : SS11341
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles Boxed Dual Double Pole Relay Module. Two completely separate double pole change over relays on a single PCB mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch. S342-2B and S342-2B/24
S342-2B Requires 12vdc supply at 20mA
S342-2B/24 Requires 24vdc supply at 20mA
Contacts Rated at 2amp
Four mounting holes provided for more permanent fixing
Knock outs for cable entry
Intended for internal use only
Screw terminals for easy connectionThis unit is provided housed in a single gang white ABS enclosure.
Relay Dimensions – L80mm x W74mm x D16mm
Box Dimensions – L87mm x W87mm x D36mm
