Hoyles S312N-8 8 x transistorised double pole relay modules on a single PCB
See all products from hoylesAED 1,720.95 VAT included

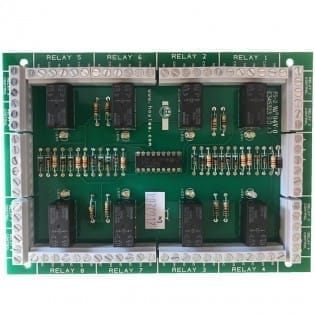

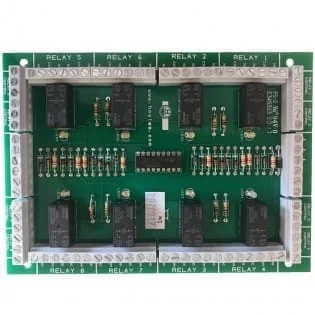

Hoyles S312N-8 8 x transistorised double pole relay modules on a single PCB. This single PCB contains 8 of our transister driven DPCO Interface relay modules. All modules operate independently but have power pre connected on the PCB for convenience. The modules accept a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.
Product Code : SS11325
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles S312N-8 8 x transistorised double pole relay modules on a single PCB. This single PCB contains 8 of our transister driven DPCO Interface relay modules. All modules operate independently but have power pre connected on the PCB for convenience. The modules accept a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.Requires 12vdc supply at 240mA
Contacts Rated at 2amp
Four mounting holes provided for mounting on self adhesive pillars supplied

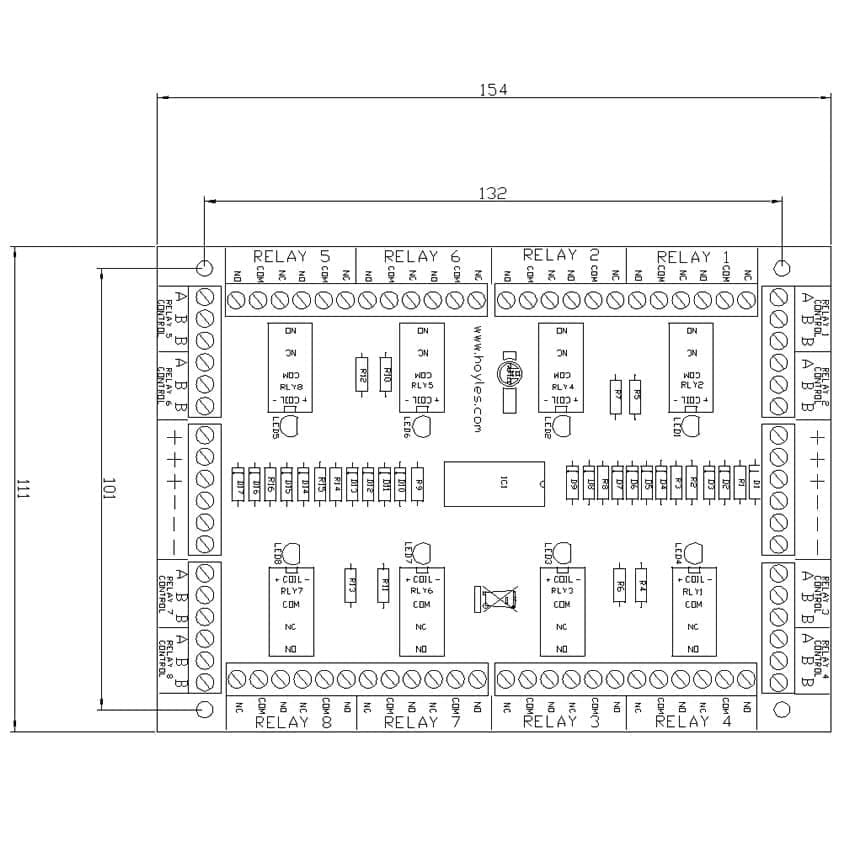

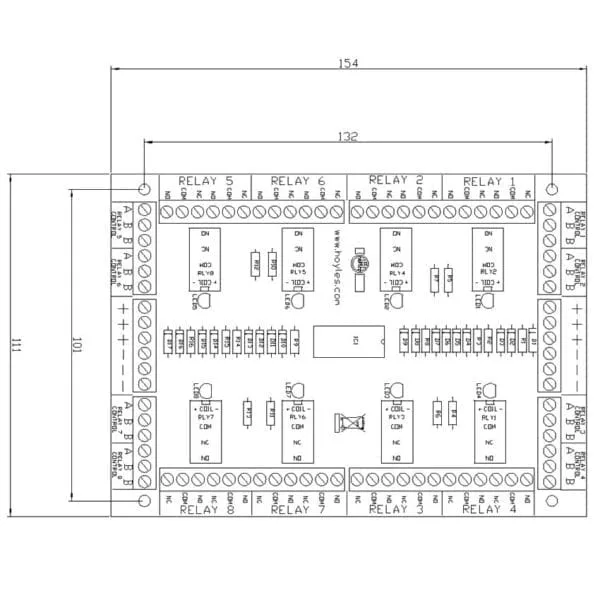

Screw terminals for easy connectionDimensions – L155mm x W110mm x D14mm
