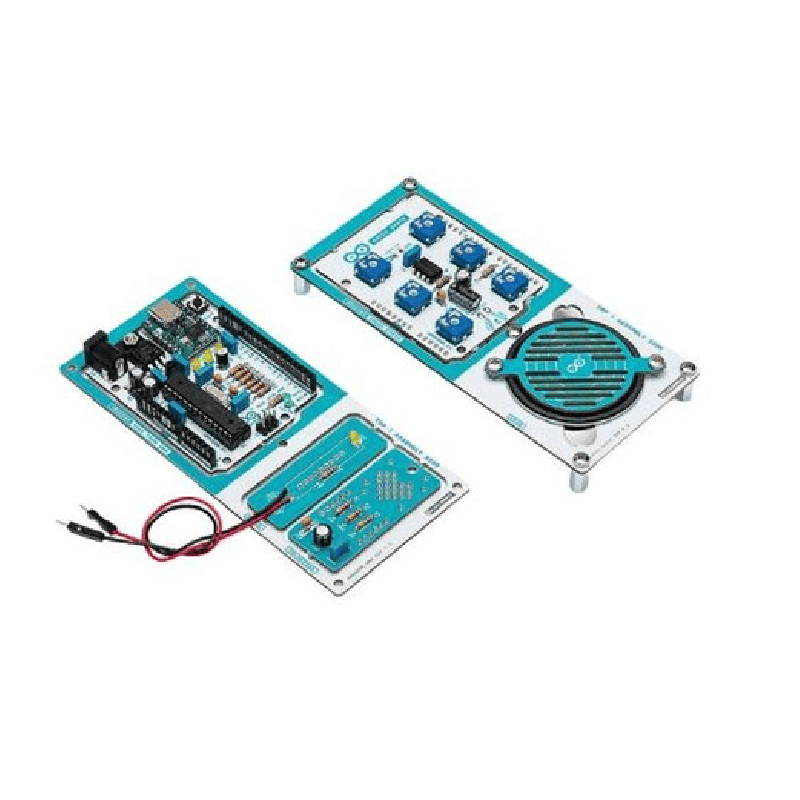

Arduino – Make Your UNO Kit – DEDK0166

Learn the basics of electronics by assembling manually your Arduino UNO, become familiar with soldering by mounting every single component, and then unleash your creativity with the kit that becomes a synth! The Arduino Make Your UNO kit is really a cool way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music. A kit with all the components to build your very own Arduino UNO and audio synthesizer shield. The Make Your UNO Kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished. Kit contains: Main Board Components: 1 x Make Your UNO PCB, 1 x USB C Serial adapter Board, 7 x Resistors (1K Ohm), 2 x Resistors (10K Ohm), 2 x Resistors (1M Ohm), 1 x Diode (1N4007), 1 x 16MHz Crystal, 4 x Yellow LEDs, 1 x Green LED, 1 x Push-Button, 1 x MOSFET, 1 x LDO (3.3V), 1 x LDO (5V), 3 x Ceramic capacitors (22pF), 3 x Electrolytic capacitors (47uF), 7 x Polyester capacitors (100nF), 1 x Socket for ATMega 328p, 2 x I/O Connectors, 1 x Connector header 6 pins, 1 x Barrel jack connector, 1 x ATmega 328p Microcontroller. Arduino Audio Synth Components: 1 x Audio Synth PCB, 1 x Resistor (100k Ohm), 1 x Resistor (10 Ohm), 1 x Audio amplifier (LM386), 1 x Ceramic capacitor (47nF), 1 x Electrolytic capacitor (47uF), 1 x Electrolytic capacitor (220uF), 1 x Polyester capacitor (100nF), 4 x connectors pin header, 6 x potentiometer (10K Ohm) with plastic knobs. Spare Parts: Additional capacitors, LEDs, and a push-button for replacements or extras. Mechanical Parts: Spacers, screw nuts, and screws to secure components as you build.
