Arduino – Nano 33 IOT with Headers, ABX00032 – DEDB0005
See all products from arduinoAED 197.93 VAT included

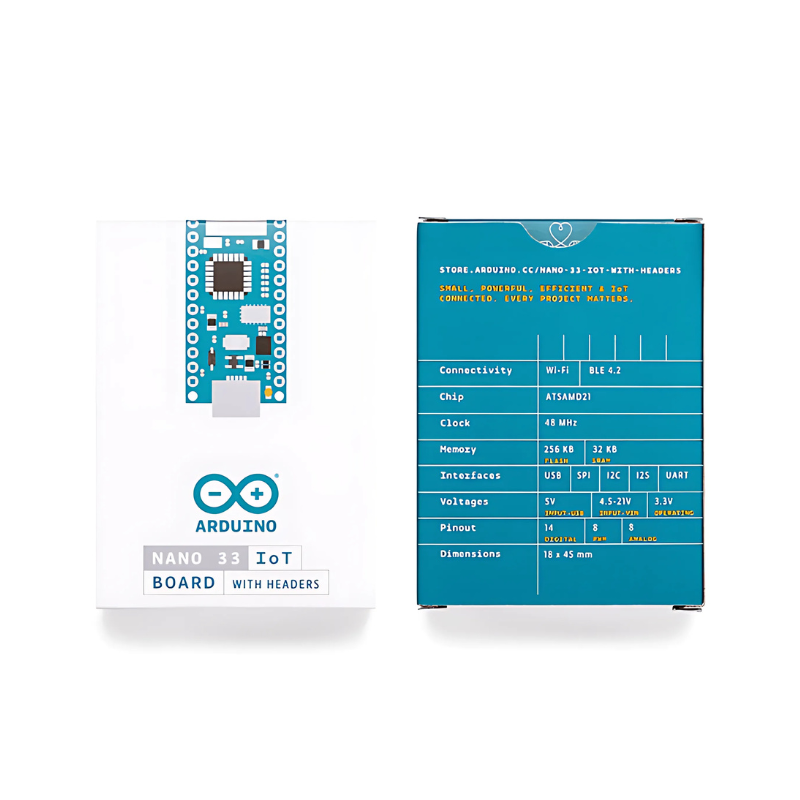

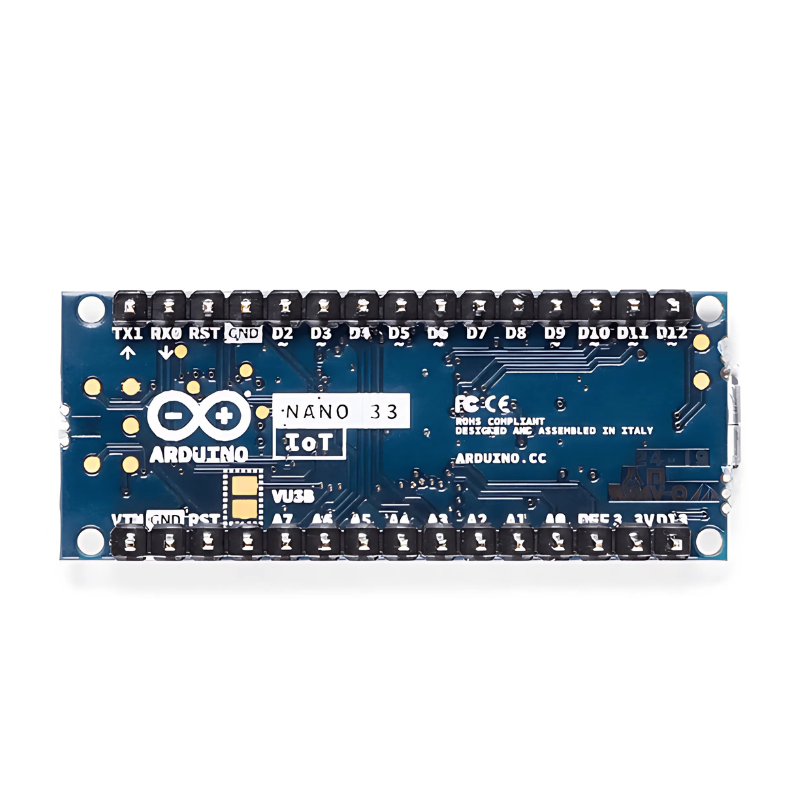

Arduino – Nano 33 IOT with Headers, ABX00032 – DEDB0005
100 in stock
Product Code : SS154681
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Arduino Nano 33 IoT is an affordable and user-friendly platform for enhancing existing devices and developing new Internet of Things (IoT) applications. Ideal for building sensor networks and Bluetooth® Low Energy devices, this board provides a comprehensive solution for various basic IoT scenarios.
Features
- The Arduino Nano 33 IoT is an affordable and user-friendly platform for enhancing existing devices and developing new Internet of Things (IoT) applications
- Ideal for building sensor networks and bluetooth, low energy devices, this board provides a comprehensive solution for various basic IoT scenarios
Specifications
- Brand: Arduino
- Model: DEDB0005
- Part: ABX00032
- Microcontroller: SAMD21 Cortex®-M0+ 32-bit low power ARM MCU
- Radio Module: u-blox NINA-W102
- Secure Element: ATECC608A
- Operating Voltage: 3.3V
- Input Voltage (limit): 21V
- DC Current per I/O Pin: 7 mA
- Clock Speed: 48MHz
- CPU Flash Memory: 256KB
- SRAM: 32KB
- Digital Input/Output Pins: 14
- PWM Pins: 11 (2, 3, 5, 6, 9, 10, 11, 12, 16/A2, 17/A3, 19/A5)
- Analog Input Pins: 8 (ADC 8/10/12 bit)
- Analog Output Pins: 1 (DAC 10 bit)
- External Interrupts: All digital pins (all analog pins can also be used as interrupt pins, but will have duplicated interrupt numbers)
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Related products
Close
Arduino – Mega Proto Shield – DEDB0020
Arduino - Mega Proto Shield - DEDB0020
Close
Arduino – Nano Every Single Board – DEDB0010
Arduino - Nano Every Single Board - DEDB0010
Close
B E – 37-in-1 Sensor Kit for Arduino – Temperature, Motion, Light Detection Modules – DESD0003
B E - 37-in-1 Sensor Kit for Arduino - Temperature, Motion, Light Detection Modules - DESD0003
Close
Arduino – Nano Board, A000005 – DEDB0001
Arduino - Nano Board, A000005 - DEDB0001
Close
B E – USB Host Shield for Arduino UNO Mega 2560 1280 Support Google Android ADK USB HUB – DEDB0088
B E - USB Host Shield for Arduino UNO Mega 2560 1280 Support Google Android ADK USB HUB - DEDB0088
Close
B E – Development Board WiFi WLAN Wireless Module for ESP8266 NodeMCU ESP-12E CP2102 – DERW0003
B E - Development Board WiFi WLAN Wireless Module for ESP8266 NodeMCU ESP-12E CP2102 - DERW0003
Close
B E – L293D Motor Driver Shield Stepper Motor Drive Shield Expansion Board – DEDB0049
B E - L293D Motor Driver Shield Stepper Motor Drive Shield Expansion Board - DEDB0049
Close

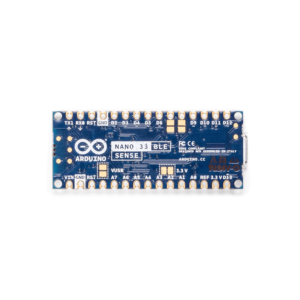

Arduino – Board Nano 33 BLE Sense with Headers – DEDB0022
